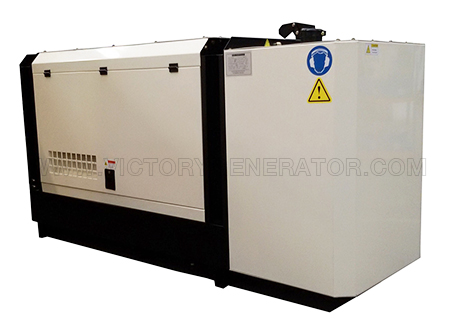

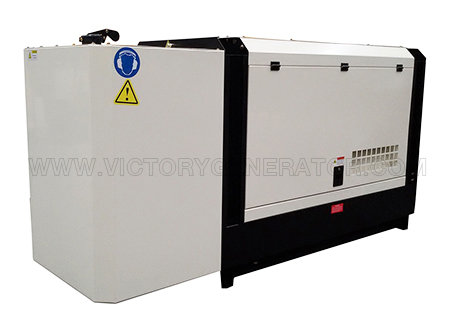

8KVA~72KVA Yanmar Diesel Generator Set

YANMAR(Japan) was founded in 1912 and developed the world's first commercially viable small diesel engine in 1933. The diesel engine has continued as Yanmar core business ever since, Yanmar key tool in the rationalization and modernization of agriculture, fishing and industry. They have brought the world ever more energy-efficient and economic engines.


VICTORY Yanmar(original Japan brand) Super Silent Diesel Generator scores a point over other models like Kubota as it is less noisy due to its noise reduction cover (patented); Easy to start which is tension free due to the auto-return decompression and recoil starter features and has cooling systems like other models the 4-cycle, vertical, air-cooled diesel engines. Yanmar Diesel Generator also scores in efficiency for diesel generators. It uses minimum resources to give maximum output; A tank gives continuous power for 13-15 hours. This is possible due to the newly incorporated feature-injection feature. Yanmar Diesel Generator have service centres and their spare parts are available in the market. It is compliant with EU and EPA emission standard. As small power genset, it is widely used in the area of industry, railway, construction and so on.


TNV Series engines delivers a host of new features to bring the acclaimed 'clean and silent' TNE Series to a whole new performance level. Meaning Total New Value, the Yanmar TNV Series offers a range of new engine improvements to make these popular work horses even more efficient, quieter and more refined than ever.


Genset Speicifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phase 4 lines

Egnine charactors: Vertical type, 4-stroke, water cooled

voltage regulation: ±1.0% with 4% engine governing

Waveform Distorition: No load<1.5% and non-distorting balance linear load <5%

THF/TIF <2%/50

Insulation Grade: H


Genset Features:

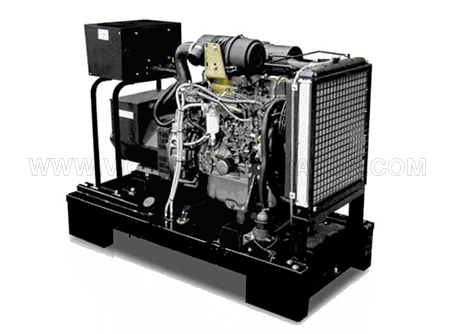

1. Brand new Japan Brand Yanmar water-cooled diesel engine

2. Mounted intelligent European Brand ComAp AMF20 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. 50℃ Copper-Wire Radiator with engine driven fan mounted on skid

6. Good quality MCCB breaker mounted

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

8. 24V DC electric start system

9. Free maintenance lead-acid starting battery and its cables

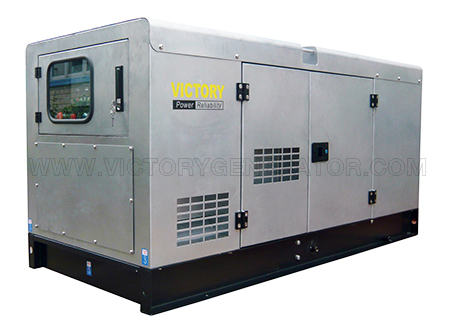

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

11. Industrial primary silencer with flexible connection elbows

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame

13. Test report, Set of drawings and Operation&Maintenance English manuals

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power


Yanmar diesel generator set has with compact structure, simple operation and low emission, high reliability and fuel efficiency. Engine is compliant with EU and EPA emission standard. As small power genset, it is widely applied in the area of industry, railway, telecom and construction and so on.


8KVA~62.5KVA 50HZ YANMAR Diesel Generator Set

Genset ModelFrequency
(HZ)
Prime PowerStandby PowerEngine ModelNO. OF CYCLINDERDISPLACEMENTBORESTROKEASPIRATIONCOMBUSTIONCOOLING SYSTEMDimensions
(mm)
Weight
(kg)
KWKVAKWKVA
V7YM506.4878.83TNV7631.1167682NaturalIDIRadiator1650*760*1250420
V9YM508109113TNV82A31.3318284NaturalDirect injectionRadiator1650*760*1250425
V11YM501012.511143TNV8831.6428890NaturalDirect injectionRadiator1650*760*1250458
V14YM5012151417.53TNV84T31.4968490TurboDirect injectionRadiator1650*760*1250470
V18YM5016201822.54TNV84T41.9958490TurboDirect injectionRadiator1700*760*1300515
V30YM5026333037.54TNV9843.31998110NaturalDirect injectionRadiator1900*760*1350621
V36YM50324036454TNV98T43.31998110TurboDirect injectionRadiator1900*760*1350681
V44YM50405044554TNV10644.412106125NaturalDirect injectionRadiator2100*730*1450822
V50YM5045565062.54TNV106T44.412106125TurboDirect injectionRadiator2100*730*1450867




9KVA~72KVA 60HZ YANMAR Diesel Generator Set

Genset ModelFrequency
(HZ)
Prime PowerStandby PowerEngine ModelNO. OF CYCLINDERDISPLACEMENTBORESTROKEASPIRATIONCOMBUSTIONCOOLING SYSTEMDimensions
(mm)
Weight
(kg)
KWKVAKWKVA
V8YM60798103TNV7631.1167682NaturalIDIRadiator1650*760*1250420
V11YM601012.511143TNV82A31.3318284NaturalDirect injectionRadiator1650*760*1250425
V14YM6012151417.53TNV8831.6428890NaturalDirect injectionRadiator1650*760*1250458
V15YM60131615193TNV84T31.4968490TurboDirect injectionRadiator1650*760*1250470
V22YM6020252227.54TNV84T41.9958490TurboDirect injectionRadiator1700*760*1300515
V33YM603037.533414TNV9843.31998110NaturalDirect injectionRadiator1900*760*1350621
V42YM603847.54252.54TNV98T43.31998110TurboDirect injectionRadiator1900*760*1350681
V50YM6045565062.54TNV10644.412106125NaturalDirect injectionRadiator2100*730*1450822
V58YM60526558724TNV106T44.412106125TurboDirect injectionRadiator2100*730*1450867
