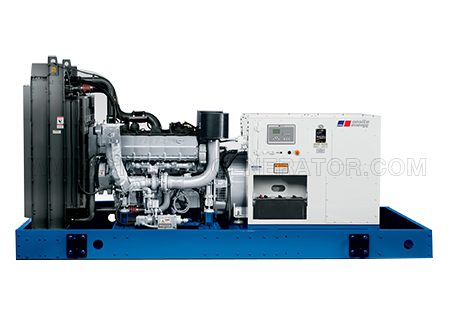

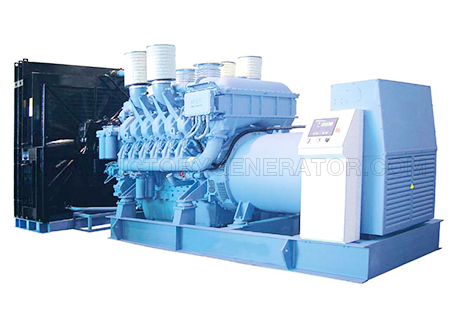

275KVA~4000KVA MTU Diesel Generator Set

MTU is the core brand of Rolls-Royce Power Systems AG, which is a world-leading provider of high- and medium-speed diesel and gas engines, complete drive systems, distributed energy systems and fuel injection systems for the most demanding requirements. Especially within the shipping sector the company has established a long and successful partnership with some ten thousands of engines in operation around the globe on all seas. Based on its innovative capabilities, its reliability and system competence, MTU combines unique drive system know-how and a large range of products of excellent quality. Victory MTU diesel genset is powered by MTU which used high-pressure commom-rail EFI technology, greatly improved combusion efficiency and lowered fuel consumption and emission. It can provide strong driving force and run long hours continuously. As high power generator with function of fault self-diagnose and remote control, it is widely used in the area of industry, railway, power equipment and so on. The MTU 2000 series is made in suzhou and 4000 series is imported from Germany. The global service net of Victory and MTU can provide our customers with reliable and guaranteed service.


Victory MTU series diesel generator set adopts with Germany brand MTU diesel engine. And the gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device, engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.


Technical Specifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phases 4 wires

Insulation Grade: H

stable voltage ≤±2.5%

voltage-form distortion rate≤5%

Brushless excitation


Genset Features:

1. Brand new famous Germany brand MTU water-cooled diesel engine

2. Mounted intelligent famous Brand ComAp AMF20 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. Radiator with engine driven fan mounted on skid

6. Good quality MCCB breaker mounted

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

8. 24V DC electric start system

9. Free maintenance lead-acid starting battery and its cables

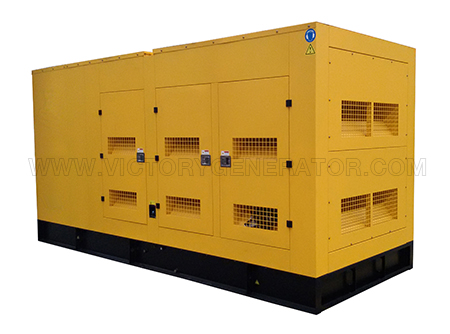

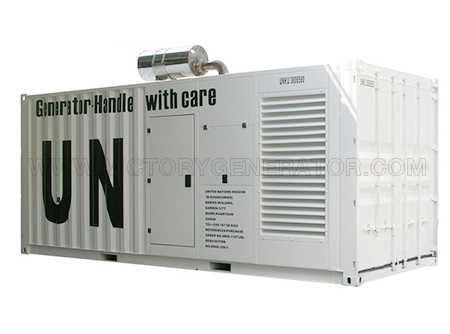

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

11. Industrial primary silencer with flexible connection elbows

11. Fuel tank as optional for some models

13. Test report, Set of drawings and Operation&Maintenance English manuals

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power


275KVA~3300KVA 50HZ MTU Diesel Generator Set

Genset ModelFrequency (HZ)Prime PowerStandby PowerEngine ModelFull-Load Fuel Consumption (L/H)CylinderOpen Generator Set Silent Generator Set
KWKVAKWKVADimensions/ L*W*H (mm) Weight (kg) Dimensions/ L*W*H (mm) Weight (kg)
V240M502202752403006R1600G70F526L3000*1450*181527604350*1500*22604870
V264M502403002643306R1600G80F566L3000*1450*181528004350*1500*22604870
V304M502803503043808V1600G70F638V2840*1660*197532504350*1600*25005270
V352M503204003524408V1600G80F728V2840*1660*197532704350*1600*25005270
V400M5036045040050010V1600G70F8010V3230*1660*204538504650*1600*25005270
V440M5020050044055010V1600G80F9010V3230*1660*204538504650*1600*25005270
V520M5047259052065012V1600G70F10712V3400*1660*214545004950*2000*25145930
V550M50500625550687.512V2000G2512012V4050*1585*2150460020 GP container10250
V572M5052065057271512V1600G80F11812V3665*1660*204553504950*2000*25145930
V580M50527.265958072512V2000G2512612V4050*1585*2150535020 GP container10250
V680M5062077568085012V2000G6515012V4050*1585*2150610020 GP container10250
V800M50728910800100016V2000G2517016V4475*1650*2300700020 GP container12160
V880M508001000880110016V2000G6518716V4475*1650*2300715020 GP container12110
V1000M5090011251000125018V2000G6521418V4700*1900*2500800020 GP container12110
V1100M50100012501100137512V4000G21R23512V6150*2250*25001400040 HQ container20800
V1200M50110013751200150012V4000G23R25312V6150*2250*25001400040 HQ container20800
V1320M50120015001320165012V4000G2326712V6350*2250*25001460040 HQ container20800
V1440M50131216401440180012V4000G2329212V6350*2250*25001460040 HQ container21400
V1600M50145618201600200012V4000G6333112V6350*2250*25001520040 HQ container21400
V1670M50152019001672209016V4000G2334416V6870*2740*26501780040 HQ container21400
V1824M50166020751824228016V4000G2337516V6870*2740*26501780040 HQ container21400
V1936M50176022001936242016V4000G6339516V6870*2740*26501780040 HQ container21400
V2000M50180022502000250016V4000G6340516V6870*2740*26501780040 HQ container21400
V2200M50200025002200275020V4000G2345920V7650*2990*26902400040 HQ container21400
V2400M50220027502400300020V4000G6350020V7650*2990*26902490040 HQ container21400
V2640M50240030002640330020V4000G63L54320V7800*2990*28002680040 HQ container21400




310KVA~4000KVA 60HZ MTU Diesel Generator Set

Genset ModelFrequency (HZ)Prime PowerStandby PowerEngine ModelFull-Load Fuel Consumption (L/H)CylinderOpen Generator Set Silent Generator Set
KWKVAKWKVADimensions/ L*W*H (mm) Weight (kg) Dimensions/ L*W*H (mm) Weight (kg)
V272M602483102723406R1600G70S58.66L3000*1450*181527604350*1500*22604870
V300M602723403003756R1600G80S63.46L3000*1450*181528004350*1500*22604870
V360M603284103604508V1600G70S748V2840*1660*197532504350*1600*25005270
V392M603564453924908V1600G80S808V2840*1660*197532704350*1600*25005270
V452M60410512.545256510V1600G70S9110V3230*1660*204538504650*1600*25005270
V500M6045657050062510V1600G80S10210V3230*1660*204538504650*1600*25005270
V550M60500625550687.512V1600G70S11312V3400*1660*214545004950*2000*25145930
V600M6054468060075012V1600G80S12312V3665*1660*204553504950*2000*25145930
V700M6063679570087512V2000G45152.612V4050*1585*2150535020 GP container10250
V784M6071289078498012V2000G8517012V4050*1585*2150610020 GP container10250
V904M608201025904113016V2000G45195.916V4475*1650*2300700020 GP container10250
V1000M609101137.51000125016V2000G85212.516V4475*1650*2300715020 GP container12160
V1170M601070.4133811701462.518V2000G8525418V4700*1900*2500800020 GP container12110
V1320M60120015001320165012V4000G4328212V6350*2250*25001460040 HQ container20800
V1520M6013701712.51520190012V4000G4331512V6350*2250*25001460040 HQ container20800
V1656M60154819351656207012V4000G8334412V6350*2250*25001460040 HQ container20800
V1760M60160020001760220012V4000G8335612V6350*2250*25001520040 HQ container20800
V1940M60176022001940242516V4000G4339816V6870*2740*26501780040 HQ container21400
V2000M60184023002000250016V4000G4341516V6870*2740*26501780040 HQ container21400
V2200M60200025002200275016V4000G8344916V6870*2740*26501780040 HQ container21400
V2480M60226028252480310020V4000G4351820V6870*2740*26501780040 HQ container21400
V2750M602500312527503437.520V4000G8356820V7650*2990*26902400040 HQ container21400
V3000M6027503437.53000375020V4000G83L62220V7650*2990*26902490040 HQ container21400
V3200M60N.AN.A3200400020V4000G63L66320V7800*2990*28002680040 HQ container21400
