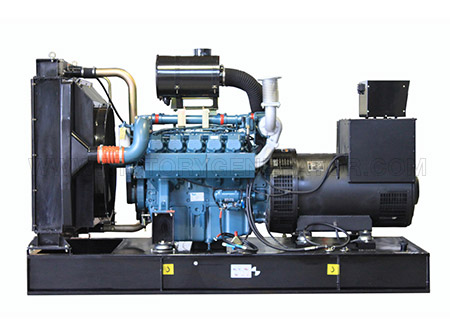

60KVA~875KVA Doosan Daewoo Diesel Generator Set

Doosan Infracore is a South Korean company, the former Daewoo Heavy Industries & Machinery. Doosan acquired Daewoo Heavy Industries & Machinery and renamed as Doosan Infracore in April 2005. The company is capable of supplying different types of engines including diesel engine, natural gas engine and marine engine.  Doosan power, an integrated engine manufacturer, is a business enterprise specializing in producing diesel engine for large vessels, called the heart of the sea and power generation. The company has made important contribution to building up the image of 'KOREA', the world's top shipbuilder' and lighted up hopes of those living on islands and remote places through constructing diesel power plants.


Features:

Low fuel consumption, Compact structure, high efficiency.

Low emission, easy maintenance, low noise and low maintenance.

Best choice for standby and prime power supply.

Applicatioin suggestion: Standby power, driven power for pump, parer supply for elevantion and other special equipments.

Running condition: Not exceed 200 hours for one year, not exceed 25 hours for full load running per year. As the standby power, maximum running for one hour within 12 hours.


Victory Daewoo series diesel generator set adopts with Korean brand Doosan Daewoo diesel engine. And the gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device,  engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.


Technical Specifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phases 4 wires

Insulation Grade: H

stable voltage ≤±2.5%

voltage-form distortion rate≤5%

Brushless excitation


Genset Features:

1. Brand new famous Doosan Daewoo water-cooled diesel engine

2. Mounted intelligent famous Brand ComAp AMF20 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. Radiator with engine driven fan mounted on skid

6. Good quality MCCB breaker mounted

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

8. 24V DC electric start system

9. Free maintenance lead-acid starting battery and its cables

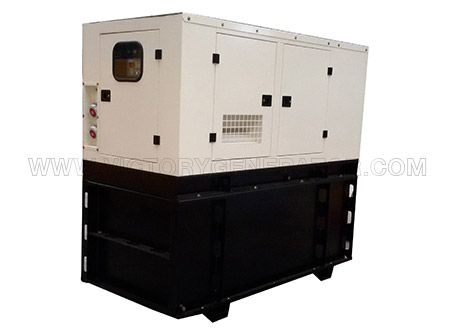

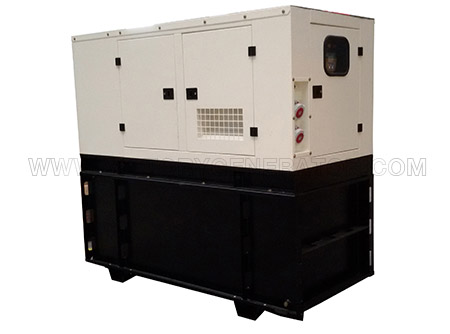

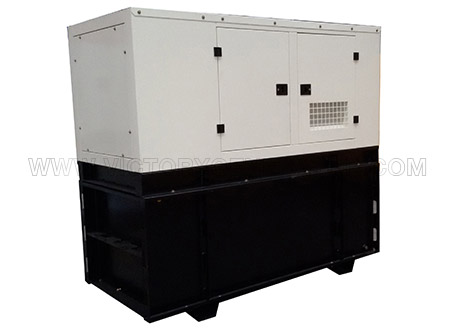

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

11. Industrial primary silencer with flexible connection elbows

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame

13. Test report, Set of drawings and Operation&Maintenance English manuals

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power


60KVA~825KVA 50HZ DOOSAN DAEWOO Diesel Generator Set

Genset ModelFrequency (HZ)Prime PowerStandby PowerEngine ModelFull-Load Fuel Consumption (L/H)CYCLINDERGenerator Set
KWKVAKWKVAMEASUREMENT/L*W*H (mm) WEIGHT (kg)
V53DE5048605366DB58146L2180*1050*13501317
V72DE506682.57290D1146196L2250*1050*14501687
V110DE50100125110137.5D1146T246L2250*1050*14501812
V140DE50128160140175P086TI-1336L2650*1050*15901981
V176DE50160200176220P086TI396L2650*1050*15902081
V220DE50200250220275P126TI536L2980*1180*16002441
V250DE50220275250312.5P126TI536L2980*1180*16002656
V264DE50240300264330P126TI-II606L2980*1180*16002696
V330DE50300375330412.5P158LE-Ⅰ738V3050*1430*19503124
V360DE50330412.5360450P158LE818V3050*1430*19503124
V400DE50360450400500DP158LC888V3050*1430*19503379
V440DE50400500440550P180FE10010V3200*1430*19503483
V500DE50450562.5500625DP180LA11210V3200*1430*19503883
V550DE50500625550687.5DP180LB12410V3300*1430*19504245
V600DE50550687.5600750P222LE-II13712V3680*1430*19504137
V660DE50600750660825DP222LC14512V3680*1430*19504697




68KVA~875KVA 60HZ DOOSAN DAEWOO Diesel Generator Set

Genset ModelFrequency (HZ)Prime PowerStandby PowerEngine ModelFull-Load Fuel Consumption (L/H)CYCLINDERGenerator Set
KWKVAKWKVAMEASUREMENT/ L*W*H (mm) WEIGHT (kg)
V60DE6054686075DB58146L2180*1050*13501317
V88DE608010088110D1146196L2250*1050*14501687
V120DE60108136120150D1146T246L2250*1050*14501812
V165DE60150187.5165206P086TI-1336L2650*1050*15901981
V200DE60180225200250P086TI396L2650*1050*15902081
V220DE60200250220275P126TI536L2980*1180*16002441
V250DE60220275250312.5P126TI536L2980*1180*16002441
V264DE60240300264330P126TI586L2980*1180*16002656
V310DE60280350310387.5P126TI-II606L2980*1180*16002696
V360DE60320400360450P158LE-Ⅰ738V3050*1430*19503124
V400DE60360450400500P158LE818V3050*1430*19503124
V460DE60410512.5460575DP158LC888V3050*1430*19503379
V500DE60450562.5500625DP158LD978V3050*1430*19503443
V550DE60500625550687.5DP180LA11210V3200*1430*19503732
V600DE60540675600750DP180LB12410V3300*1430*19504245
V660DE60600750660825P222FE13712V3480*1430*19504548
V700DE60630787.5700875DP222LB14512V3480*1430*19504235
