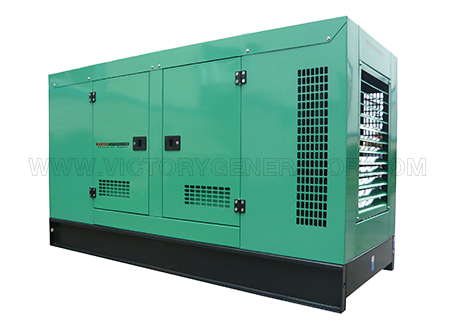

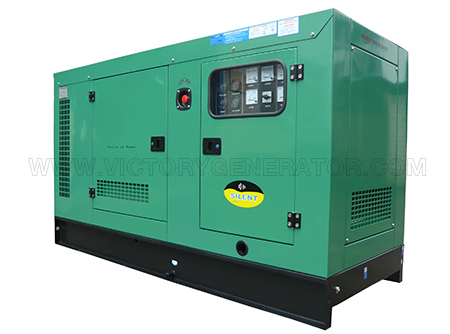

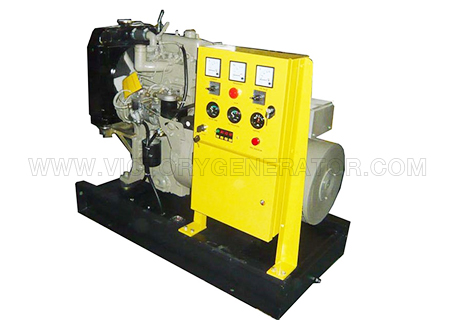

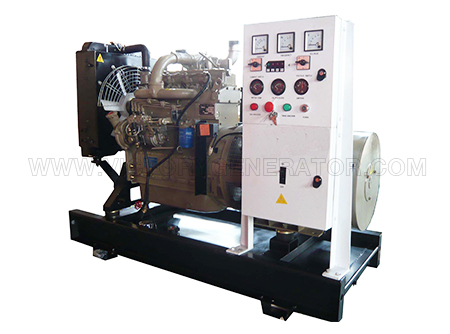

10KVA~343KVA Weifang Diesel Generator Set

Victory-Weifang series diesel gensets adopt with brands Tianhe and Kefa engines in Weifang or brand Lijia smallest twin-cylinder engines. The main products of the companies are R series diesel engine with advanced technology from UK Ricardo Inc, 495 series diesel engine, single cylinder diesel engine, all kinds of machinery aircrew and automobile, tractor spare parts. The power scope is 8.8KW~320KW.


Victory Weifang series diesel gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device, engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.


Technical Specifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging) or 1.0

Protection Standard: IP21-IP23

Model of Connection: 3 phase or single phase

Insulation Grade: H/F

stable voltage ≤±2.5%

voltage-form distortion rate≤5%

Brushless excitation


Genset Features:

1. Brand new famous Weifang Tianhe/Kefa/Lijia water-cooled diesel engine

2. Mounted intelligent famous Brand Smartgen HGM6120 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. Radiator with engine driven fan mounted on skid

6. Good quality MCCB breaker mounted

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

8. 24V DC electric start system

9. Free maintenance lead-acid starting battery and its cables

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

11. Industrial primary silencer with flexible connection elbows

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame

13. Test report, Set of drawings and Operation&Maintenance English manuals

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power


Weifang 10KVA~343KVA 50HZ Diesel Generator Set

Genset modelFrequencyPrime PowerStandby PowerEngine modelFuel comsuptionLube comsuptionOpen typeSilent Type
KWKVAKWKVAg/kw.hg/kw.hDimension
(mm)
Weight
(kg)
Dimension
(mm)
Weight
(kg)
V12T501012.51113.75Y480BD<=257<=2.041350*670*10306301700*900*1150800
V14T5012151417.5Y485BD<=257<=2.041350*670*10306801700*900*1150850
V18T5016201822.5495D<=256<=2.041700*630*10007502000*900*1200900
V22T5020252227.5495D<=256<=2.041700*630*10007802000*900*1200950
V26T5024302632.5K4100D<=256<=2.041700*630*10008002000*900*1200990
V32T5028353240K4102D<=256<=2.041700*630*10008502000*900*12001050
V33T503037.53341495ZD<=256<=2.041760*800*11009002250*1000*13001000
V40T50364540504100ZD<=256<=2.041760*800*11009502250*1000*13001170
V45T5040504556.25R4105ZD<=256<=1.631850*800*110010002250*1000*13001200
V53T5048605366.25R4105ZD<=231<=1.631850*800*110010502250*1000*13001300
V64T505872.56480R4105AZLD<=231<=1.632200*800*120012002450*1000*13001350
V85T50759485106R6105ZD<=231<=1.632350*800*127013002800*1150*16101450
V100T5090112.5100125R6105ZLD<=231<=1.632350*800*127013502800*1150*16101500
V110T50100125110137.5R6105AZLD<=218<=1.632470*800*127014502800*1150*16101650
V120T50120150132165R6105IZLD<=218<=1.632470*800*127015502800*1150*16101700
V160T50140175160200R6113AZLD<=218<=2.042470*800*127015502800*1150*16101700
V220T50200250220275TH6126ZD<=198<=2.042800*1100*180023003300*1200*20002500
V275T50250312.5275343.75TH6126IZLD<=198<=2.042900*1100*180026503400*1200*20002800




Weifang 10KVA~343KVA 60HZ Diesel Generator Set

Genset modelFrequencyPrime PowerStandby PowerEngine modelFuel comsuptionLube comsuptionOpen typeSilent Type
KWKVAKWKVAg/kw.hg/kw.hDimension
(mm)
Weight
(kg)
Dimension
(mm)
Weight
(kg)
V12T601012.51113.75Y480BD<=257<=2.041350*670*10306301700*900*1150800
V14T6012151417.5Y485BD<=257<=2.041350*670*10306801700*900*1150850
V18T6016201822.5495D<=256<=2.041700*630*10007502000*900*1200900
V22T6020252227.5495D<=256<=2.041700*630*10007802000*900*1200950
V32T6028353240K4100D<=256<=2.041700*630*10008502000*900*12001050
V40T60364540504100ZD<=256<=2.041760*800*11009502250*1000*13001170
V45T6040504556.25R4105ZD<=256<=1.631850*800*110010002250*1000*13001200
V53T6048605366.25R4105ZD<=231<=1.631850*800*110010502250*1000*13001300
V75T6068857594R6105ZD<=231<=1.642350*800*127012502800*1150*16101400
V98T608010088110R6105ZD<=231<=1.632350*800*127013002800*1150*16101450
V100T6090112.5100125R6105ZLD<=231<=1.632350*800*127013502800*1150*16101500
V110T60100125110137.5R6105AZLD<=218<=1.632470*800*127014502800*1150*16101650
V120T60120150132165R6105IZLD<=218<=1.632470*800*127015502800*1150*16101700
V170T60150187.5165206.25R6113AZLD<=218<=2.042470*800*127015002800*1150*16101800
V220T60200250220275TH6126ZD<=198<=2.042800*1100*180023003300*1200*20002500
V275T60250312.5275343.75TH6126IZLD<=198<=2.042900*1100*180026503400*1200*20002800
