Deepsea Control System

Deep Sea Electronics is one of the world’s top manufacturers of generator control, auto transfer switch and battery charger equipment. We employ over 120 people on four continents and sell our products to 150 countries direct from our UK head office and through our comprehensive distributor network.


Throughout our 40-year history, we have invested heavily in people, processes and research & development to ensure DSE continues to enhance its reputation across world markets.


DSE has UK manufacturing and engineering facilities to be proud of. We develop and manufacture a range of over 140 different products that provide flexible control solutions for multiple applications.

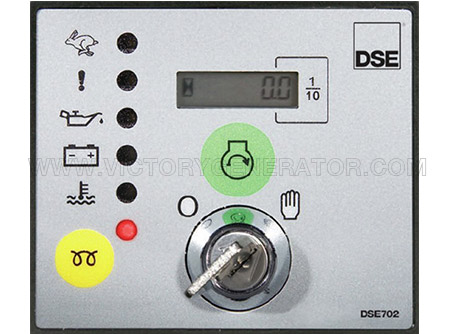

Discription (DSE702K)

The DSE702 is a compact control module with an hours counter display. The module offers a range of features for single-set applications including low oil pressure, high engine temperature and over speed monitoring.

The DSE702 is available in Manual and Auto Start versions, offering an excellent range of engine monitoring and protection features plus a tamper-proof engine hours counter. The module offers inputs to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input. Auto Start versions also include an input option for a start signal from a remote location.

When the module detects any of the above faults it will automatically shut down the engine. The module also has the capability to monitor battery charging by utilising the WL terminal on the charge alternator. On detecting a battery charging fault, it will light the warning LED on the front panel.


KEY FEATURES

Manual start and Auto Start versions

Remote start input (auto start version only)

Auxiliary shutdown input (Manual start version only)

Engine monitoring and protection

LED indication

Engine pre-heat

Tamper proof engine hours

Front panel mounting


KEY BENEFITS

• Hours counter provides accurate information for monitoring maintenance and warranty periods

• Multiple engine parameters are monitored simultaneously

Ensures the generator can only be operated when the key is used.

Provides accurate information for monitoring warranty and maintenance requirements.

Provides a simple connection to operate the generator from a remote location.

Provides a simple input for a remote stop switch.

Provides instant generator operating status.

Warms the engine to a safe temperature at start-up to increase engine life.

Protects engine from long-term damage.

Provides instant generator operating status.


OVERALL SIZE

84 mm x 72 mm x 34.9 mm (3.3" x 2.8"x 1.4")

PANEL CUT-OUT SIZE

80 mm x 68 mm (3.1" x 2.7')

MAXIMUM PANEL THICKNESS

8 mm (0.3")

WEIGHT

0.16kg

Deepsea Control System

Deepsea Control System

Discription (DSE6110)

The DSE6110 is an Auto Start Control Module and the DSE6120 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single gen-set applications.

Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

Both modules offer electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.

The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also

available.


KEY FEATURES

Support for 0-10 V & 4-20mA oil pressure senders.

Heated display option.

3-phase generator sensing.

3-phase mains (utility) monitoring.

Generator/load current monitoring & protection.

Configurable analogue/digital inputs (9).

Configurable DC, volt-free and staged loading outputs (6).

CAN, MPU & alternator speed sensing (selectable depending on engine type).

Tier 4 ECO engine support including exhaust fluids & filters.

Configurable event log (100).

DSE Configuration Suite PC Software.

Fuel and start outputs (configurable on CAN).

J1939-75 instrumentation output configurable CAN instrumentation & alarms.

Start on low battery.

Enhanced alarm functionality.

Low load alarm.


KEY BENEFITS

Provides flexibility for use with multiple sensors and engine types.

Ensures the display continues to operate in extreme cold weather conditions.

Provides true generator sensing.

Provides true generator and mains (utility) sensing.

Provides convenience of monitoring and protection of the generator or monitoring of the load current.

Provides multiple installation options.

Provides full generator load control.

Ensures the module can be used with a wide number of engine types.

Ensures the control module can be used with the latest in modern electronic engine technology.

Provides access to historical alarms and operational status.

Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

Provides multiple installation options.


OVERALL SIZE

216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)

PANEL CUTOUT SIZE

184 mm x 137 mm (7.2” x 5.3”)

MAXIMUM PANEL THICKNESS

8.0mm (0.3”)

WEIGHT

0.5kg

Deepsea Control System

Deepsea Control System

Discription (DSE7310)

The DSE7310 is an Auto Start Control Module and the DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem). The DSE7320 will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion.

Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.

The extensive list of features includes enhanced event and performance monitoring, remote communications, PLC functionality and dual mutual standby (DSE7310 only) to reduce engine wear.

The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also

available.


KEY FEATURES

• 4-Line back-lit LCD text display

• Five key menu navigation

• Front panel editing with PIN protection

• Customisable status screens

• Power save mode

• Support for up to three remote display units

• 9 configurable inputs

• 8 configurable outputs

• Flexible sender inputs

• Configurable timers and alarms

• 3 configurable maintenance alarms

• Multiple date and time scheduler

• Configurable event log (250)

• Tier 4 CAN engine support

• Integral PLC editor

• Easy access diagnostic page

• CAN and Magnetic Pick-up/Alt.sensing

• Fuel usage monitor and low fuel alarms

• Charge alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• Engine exerciser

• “Protections disabled” feature

• kW & kV Ar protection

• Reverse power (kW & kV Ar) protection

• LED and LCD alarm indication

• Power monitoring (kW h, kV Ar,kV A h, kV Ar h)

• Load switching (load shedding and dummy load outputs)

• Automatic load transfer (DSE7320)

• Unbalanced load protection

• Independent Earth Fault trip

• True dual mutual standby with load balancing timer (DSE7310 only)

• USB connectivity

• Backed up real time clock

• Fully configurable via DSE Configuration Suite PC software

• Configurable display languages

• Remote SCADA monitoring via DSE Configuration Suite PC software

• User selectable RS232 and RS485 communications

• Configurable Gencomm pages

• Advanced SMS messaging (additional external modem required)

• Start & stop capability via SMS messaging

• Additional display screens to help with modem diagnostics

• Idle control for starting & stopping.

• DSENet® expansion compatible

• Heated display option available


KEY BENEFITS

• 132 x 64 pixel ratio display for clarity

• Real-time clock provides accurate event logging

• Multiple date and time scheduler

• Set maintenance periods can be configured to maintain optimum engine performance

• Ethernet communications (via DSE855 module), provides advanced remote monitoring

• Modules can be integrated into building management systems (BMS)

• Increased input and output expansion capability via DSENet®

• Licence-free PC software

• IP65 rating (with supplied gasket) offers increased resistance to water ingress

• PLC editor allows user configurable functions to meet specific application requirements

Ensures the display continues to operate in extreme cold weather conditions.

Provides true generator and mains (utility) sensing.

Provides clear accurate power measurement information.

Provides secure and simple off site monitoring. All ports are continuously active.

Provides multiple installation options.

Makes the module ideal for standard and electronic engine applications.

Tracks the amount of fuel being used and sounds an alarm if over/under fuel use is detected.

Ensures the control module can be used with the latest in modern electronic engine technology.

Ensures the load can be transferred manually/automatically between mains (utility) and generator power.

Ensures the control module is suitable for worldwide use.

Reduces the power usage within system batteries.

Ensures additional applications are easily integrated into the system.

Allows alternative sender types to be selected using one input.

Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

Provides access to historical alarms and operational status.

Allows load options and dummy load requirements to be independently controlled.


OVERALL SIZE

240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE

220 mm x 160 mm (8.7" x 6.3")

MAXIMUM PANEL THICKNESS

8.0 mm (0.3”)

WEIGHT

0.86kg
