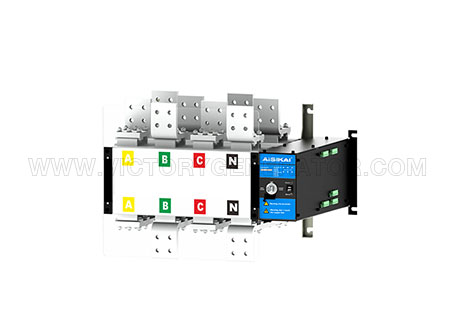

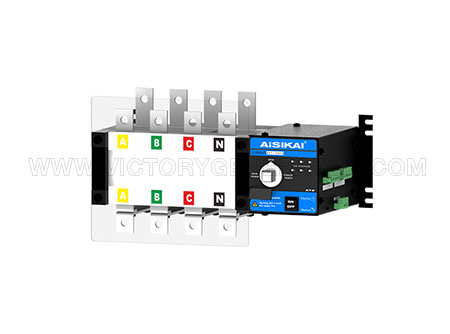

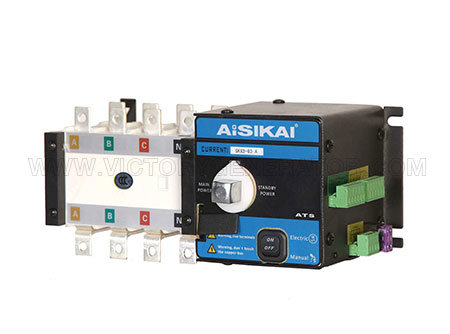

20A~3200A Aisikai Automatic Tranfer System

JIANGSU AISIKAI ELECTRIC CO.,LTD is located in Yangzhou city, Jiangsu province. Since 2007 the company since its establishment, manufacturing and research and development has always been committed to high-quality low voltage electric switch, product line covers one or two, three level distribution lead, enterprises have passed UKAS ISO9001 quality management system certification, SGS qualified supplier certification, won the national high tech enterprise certificate, industry ten big brand certificate, The contract and trustworthy enterprise certificate, all products have been Chinese national compulsory CCC certification, the European CE certification, and has a number of patented technology, all products with independent intellectual property rights.


ATS is designed for use in power systems for the safe transfer of a load supply between a main power and a standby power. The changeover is done in open transition and with minimum supply interruption during transfer ensuring full compliance with IEC 60947-6-1, GB 14048-11. As a PC Class switch, the ATS is capable of "making and withstanding short circuit currents" assigned to IEC 60947-3 utilization categories of up to AC33A.

Features:

PC Grade \ CCC certification \ CE certification \ SGS certification: Stable and reliable quality

AC-33A design: Frequent changed in using

4 patents technology:

One-piece copper platoon output structure

Permanent magnet motor drive technology

Zero overlap switching technology

Multiple safety protection function:

Mechanical and electric duplex interlocking design

Safety zero design

Safety protection board accessory

High on/off position capability:

10 for rated current breaking capacity

10 for rated current connection capability

12kv rated impulse withstand voltage

120 ka rated conditional short-circuit current


Application:

• Power Control and Safety between a main power and a standby power.

• A complete product delivered as a fully assembled and tested solution.

• Intuitive HMI for emergency / local operation.

• Integrated and robust switch disconnection.

• Window with clearly visible position indication I – 0 - II.

• An inherent failsafe mechanical interlock.

• Stable positions (I – 0 – II) non affected by typical vibration and shock.

• Extremely rugged, error free and built in padlocking facility.


20A~3200A Aisikai ATS

ModelSKX2-20/4PSKX2-40/4PSKX2-63/4PSKX2-80/4PSKX2-100/4PSKT1-125/4PSKT1-160/4PSKT1-250/4PSKT1-400/4PSKT1-630/4PSKT1-800/4PSKT1-1000/4PSKT1-1250/4PSKT1-1600/4PSKT1-2000/4PSKT1-2500/4PSKT1-3200/4P
Agreed thermal current Ith20A40A63A80A100A125A160A250A400A630A800A1000A1250A1600A2000A2500A3200A
Rated insulation voltage Ui750V1000V
Rated impulse withstand voltage Uimp8KV12KV
Rated work voltage of the switch copper UeAC440V
Rated work current Ie20A40A63A80A100A125A160A250A400A630A800A1000A1250A1600A2000A2500A3200A
Rated connection capacity10Ie
Rated breaking capacity10Ie
Rated limit short-circuit current100KA70KA100KA120KA80KA
Rated current short-term tolerance IS7KA9KA13KA26KA50KA55KA55KA
Transfer Time I-II or II-I0.45S0.6S1.2S2.4S
Control  voltage of the switch motorStandard AC 220V    Optional AC 110V,280V,DC 24V
Cabinet modelBB3GCK2
Cabinet size500*250*600mm600*350*700mm1000*800*1900mm
