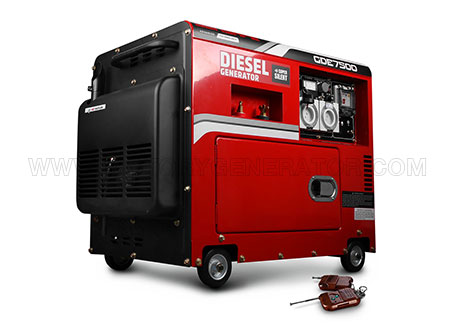

4.5KW~5.5KW Silent Diesel Welding Generator

Victory always develops products from the customer's point of view, we strick to improve the performance of diesel engine,such as combustion efficiency, fuel consubption, exhaust emission, noise level, etc. Up to now, Victoy Portable Diesel Welding Generator is widely used in agriculture, farm, maintenance, construction, home, etc. There are two types of portable diesel welding generator: Open Type & silent type. The open skid mounted generator can have optional wheels and hand kits, electric start.Victory portable diesel welding generator sets adopt different diesel engines and brushless generators.Generally adopt 1-cylinder & 4-stroke & air-cooled engine, low fuel consumption, high reliability; It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.The types of generator sets are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure. With both functions in the same time, which makes it very popular all over the world.

Features

1. 100% Output and 100% copper wire.

2. Electromagneic type breaker to protect the generator being damaged.

3. Big enough free maintenance battery, world famous brand.

4. Packing with Strong and thick enough carton box to protect the gensets during long transporation.

5. Every spare parts suppliers are choosed extremely stricted, to control the quality well.

6. Large muffler & air-cleaner, reducing exhaust and intake noise.

7. Waterproof canopy ensures protection against ingress of dust and water. All Victory generators meet or exceed relevant standards for noise and emission legislation.

8. A range of industry recognized engines are used to ensure the best power source for the size of generator is used.

9. Adopt spray powder-coated painting materials to keep the generator non-corrosive in extreme environmental conditions

10. AVR alternator provides stable voltage and current

11. AC output and welding function can be used in the same time


Technology

Frequency 50Hz, 3000RPM, Single-phase voltage 220V, 230V, 240V, etc.

Three-phase voltage 380V/220V, 400V/230V, 415V/240V, etc.

Frequency 60Hz, 3600RPM, Single-phase voltage 120V, 127V, 277V, etc.

Three-phase voltage 208V/120V, 220V/127V, 480V/277V, etc.

Power Factor: 1.0

Protection Standard: IP21-IP23

Model of Connection: 1 phase 2 lines, 3 phase 4 lines

Insulation Grade: H

Power Range: 5KW-10KW

Starting System: Electric

Govern System: Mechanical

Air cleaner: Dual element

Rotor & Stator: 100% Copper wire

Fuel Tank: 8~10 hours continuous running under full load

Soundproof Canopy: Waterproof canopy ensures protection against ingress of dust and water, and at same time, it can effectively reduce the noise

Easy folding handles: Wide, positive lock folding handles offer convenient transport and storage and a more compact unit.


Mutiple outlets for easy connection of multiple tools

Protects the generator by shutting the engine off when low oil is detected.

Direct-injection engine, long life, low fuel consumption, strong and powerful

ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.


5KW 50Hz Silent Diesel Welding Generator


DC WelderModel:DW180ARS
Max Arcing Current (A)180
Operating Voltage (V)22-26
Welding Current Range (A)50-130
Duty Cycle60%
Applicable Electrode (Φ)2.0-3.2
AC GeneratorPhaseSingle phase
Frequency (Hz)50
Rated Output (KW)4.5
Max Output (KW)5.0
Rated Voltage (V)110-240
Power factor(cosΦ)1.0
Alternator typeSelf-excited,2-pole,single phase
Material of winding100% Copper Wire
EngineModel LA186FAG
Type1-cylinder, 4 stroke, air-cooled, diesel engine
Bore×stroke(mm)86*72
Speed (rpm)3000
Displacement (cc)418
Compression Ratio19:01
Max. Output 8.6HP(6.3KW)
Rated Output 7.7HP(5.7KW)
Max. Torque18.7N.m
Starting SystemElectric starting with battery
Lubrication SystemPressure splashed
Fuel Tank (L)16
Oil Capacity (L)1.65
Noise Level at 7m (dBA)82
DimensionsDimension (L*W*H)900*520*700mm
G.W165kg
20ft Container72PCS
40ft Container144PCS
Optional  FeaturesHandle & WheelsYes
Three phase voltageYes




5.5KW 60Hz Silent Diesel Welding Generator

DC WelderModel :DW180ARS
Max Arcing Current (A)180
Operating Voltage (V)22-26
Welding Current Range (A)50-130
Duty Cycle60%
Applicable Electrode (Φ)2.0-3.2
AC GeneratorPhaseSingle phase
Frequency (Hz)60
Rated Output (KW)5.0
Max Output (KW)5.5
Rated Voltage (V)110-240
Power factor(cosΦ)1.0
Alternator typeSelf-excited,2-pole,single phase
Material of winding100% Copper Wire
EngineModel LA186FAG
Type1-cylinder, 4 stroke, air-cooled, diesel engine
Bore×stroke(mm)86*72
Speed (rpm)3600
Displacement (cc)418
Compression Ratio19:01
Max. Output 10HP (7.4KW)
Rated Output 8.6HP(6.3KW)
Max. Torque18.7N.m
Starting SystemElectric starting with battery
Lubrication SystemPressure splashed
Fuel Tank (L)12.5
Oil Capacity (L)1.65
Noise Level at 7m (dBA)82
DimensionsDimension (L*W*H)900*520*700mm
G.W165kg
20ft Container72PCS
40ft Container144PCS
Optional  FeaturesHandle & WheelsYes
Three phase volatgeYes
