600KW Power Project in Trinidad and Tobago

600KW Power Project in Trinidad and Tobago

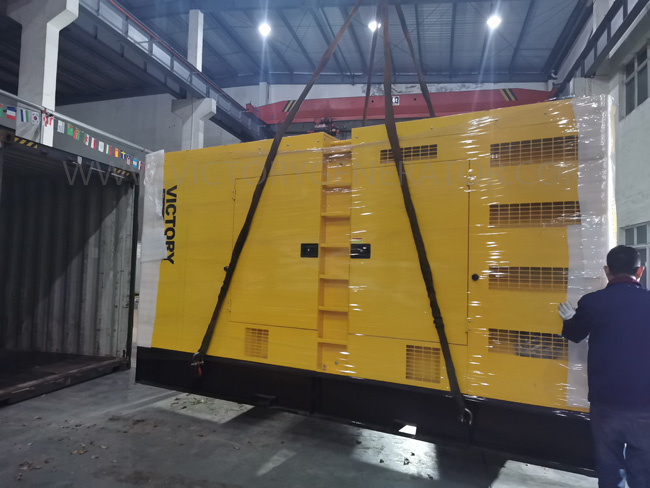

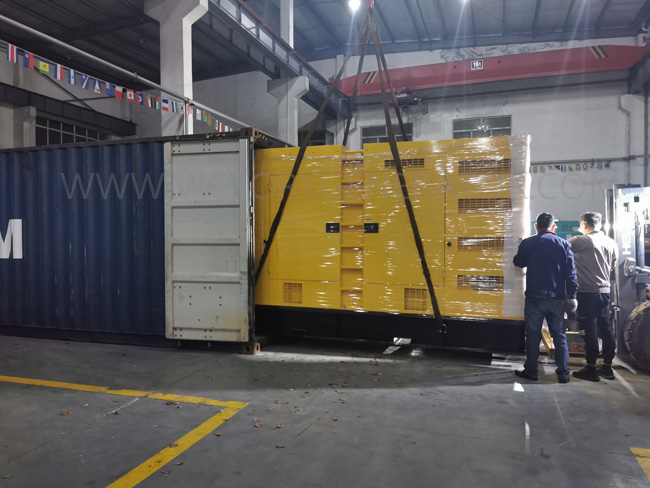

Two units of 600KW Generators were just delivered by a 40HQ container to Trinidad and Tobago this month.  The gensets information as follows:

Model V600C, Prime Power 550KW/687.5KVA, Standby Power 600KW/750KVA, Powered by American Cummins diesel engine and British Stamford Brushless Alternator.

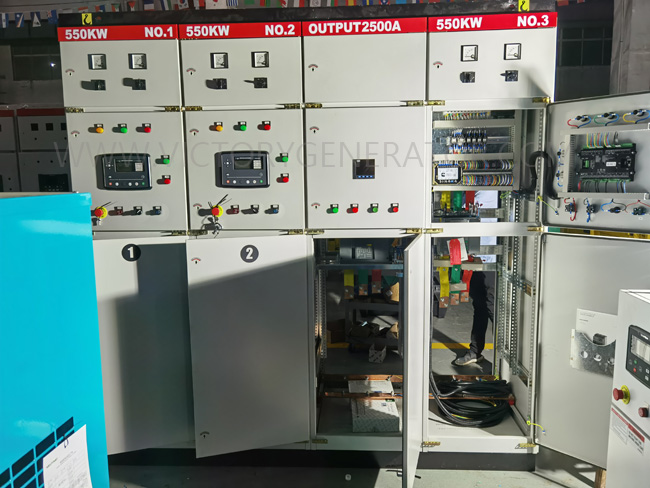

The two generators were synchronized working in parallel. When one genset is running, the load is up to 80% (adjustable) power of rated power and automatic systems send out "the order for adding genset" by itself if the genset is faulty. And the other genset will be started up and be running. When two gensets are running, if total load is less than 20% (adjustable), the system will send out "the order for reducing genset".  And the standby genset which is running will be unloaded and break off by itself.

Features: Warning Function, Paralleling Function (auto-tripping, closing, auto-paralleling, disconnection, auto load shifting, and distribution. ATS Function can be selected by the generators whose bus bar is below 3200A.  Safety: Auto-tripping, closing, touch operation, fully auto control, avoiding disoperation by people.
