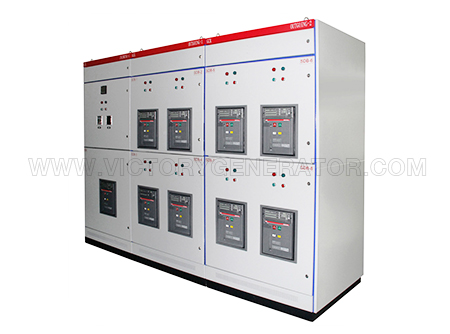

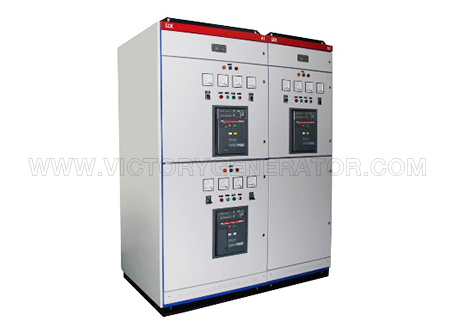

Synchronizing Parallel Control Panel

Victory Synchronizing Parallel Control Panel can achieve parallel operation of mutiple units and adjust PLC program, make automatic synchronizationand distribute load based on different needs of users on the electric use so that the generator set operates more scientifically, rationally and more economically.


Product Introduction:

1) Parallel control system adopts the all-digital liquid crystal display and has remote intelligent monitoring with communication interfaces. Each unit has the automatic synchronization and automatic parallel function.

2) When the power supply load of a unit is close to 80% of the rated capacity(adjustable), the system will automatically send the "unit increase instruction" so that the standby unit automatically starts. After automatic synchronization, the automatic parallel operation is made and active load is automatically divided equally. When the power supply unit fails, the system will automatically break failed unit and send the "unit increase instruction" so that the standby unit automatically start and automatic switching is made for power supply.

3) In the case that the two units are put into use, if the total load is less than 20% (adjustable), the system will send the "unit reduction" signal, so that the operating standby unit releases loads with removal of parallel operation and automatically shuts down after maintenance operation.

4) Up to 32 units can be in parallel operation.


Features:

Self-provided power grid operation, unit operation or multi-unit operation;

Voltage and frequency control;

Frequency and voltage comparison to achieve unit synchronization;

Active/reactive load distribution;

Startup and shutdown program control;

Unit detection and protection;

The analog logic control power is replaced by the digital mode;

The operation is more simple and convenient and the performance is improved;

Save fuel and prolong the unit life;

Stablepower supply voltage and frequency with high quality;

Centralized management and more flexible power dispatching;

Full automatic digital control parallel operation to avoid human erros;

Suitable for 220V/127V, 400V/230V, 480V/277V, and other voltage conditions.


Technical data of ComAp InteliCompact-NT Synchronizing Control Module

Power supply

Power supply range8-36VDC
Power supply drop-out immunity50ms (from min. 10V)
Power consumptioncca 200mA/8V; 50mA/36V
Peak power consumption (LT)cca 0,56A/8V; 1,8A/36V
Backup battery typeCR 1225
Estimated backup battery lifetime10 years


Operating conditions

Operating temperature-20... 70°C
Operating temperature (LT version)-40... 70°C
Operating humidity95% non-condensing (IEC/EN 60068-2-30)
Protection degree (front panel)IP65
Vibration5-25Hz, +/- 1.6mm; 25-100Hz, a = 4g
Shocksamax 200m/s2
Storage temperature-30... 80°C


Physical dimensions

Dimensions185x125x60mm (WxHxD)
Weight-40... 70°C
Mounting cutout size175x115mm (WxH)


Standard conformity

Electromagnetic compatibilityEN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
Low voltage directiveEN 61010-1:95 +A1:97


Generator/Mains measurements

Measurement inputs3ph generator voltage, 3ph generator current, 3ph mains voltage
Measurement typeTrue RMS
Voltage range480V Ph-Ph (277V Ph-N)
Max. measured voltage340V Ph-N
Voltage accuracy1% from the range
Current range5A
Max. measured current9A
Max. allowed current12A continous, 50A/1s
Current accuracy2% from the range
CT input burden<0.5VA
Frequency range30-70Hz, measured from L3
Frequency accuracy0.05Hz

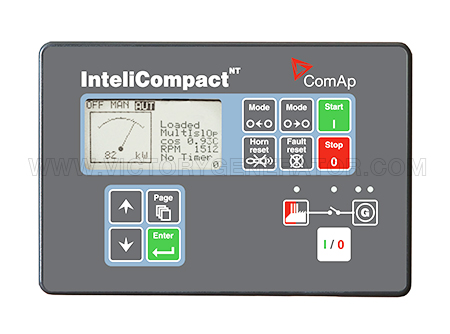

Synchronizing control module: InteliCompact-NT

InteliCompactNT Family controllers are comprehensive gen-set controllers for single and multiple generating sets operating in stand-by or parallel modes. A modular construction allow upgrades to different levels of complexity in order to provide the best solution for various customer applications. The controllers are equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive operation, which sets, together with high functionality, new standards in Gen-set controls.


Features

Compact genset controller for single genset operating in Parallel to Mains mode or Auto Mains Failure (AMF) mode with no-break transfers

Meets all requirements for AMF applications

Forward and reverse synchronizing

Peak shaving, Peak lopping

Load, speed, voltage and power factor control

High tariff avoidance

Mains import/export

Full gen-set monitoring and protection

Possibility to connect up to 8 gauges to display engine values

True voltage and current RMS measurement

Outstanding EFI engine support (CAN/J1939, RS232/Modbus) with diagnostic messages in plain text

3 phase generator voltage and current measurement

3 phase mains voltage measurement

3 phase power measurement

1 phase mains current measurement

Additional 7 binary inputs/outputs via IC-NT CT-BIO7 (in total up to 16 inputs/15 outputs)

3 analog inputs

RS232, RS485, USB, Modbus, GSM/Analog Modem, Internet communication*

GPRS communication and IC-NT RD (remote display) software

AirGate and WebSupervisor support

Support of active SMS Events or Commands

Event and performance log

2 languages (user changeable)

IC-NT CT-BIO7 extension plug-in module included

Warning function, paralleling function, auto-tripping, closing, auto-paralleling, disconnection, auto load shifting, and distribution. ATS function can be selected by the generators whose bus bar is below 3200A. Safety: auto-tripping, closing, touch operation, fully auto control, avoiding disoperation by people. Humanized operation: Digital humanized operation interface.
