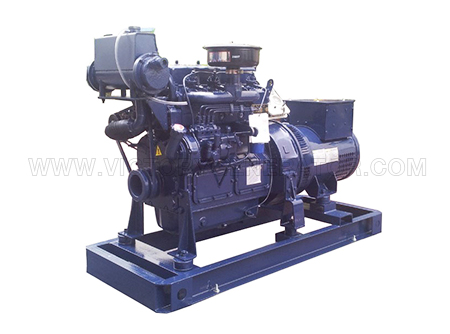

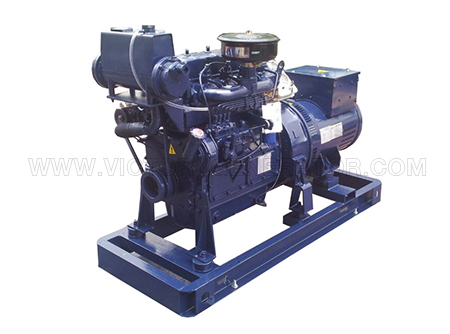

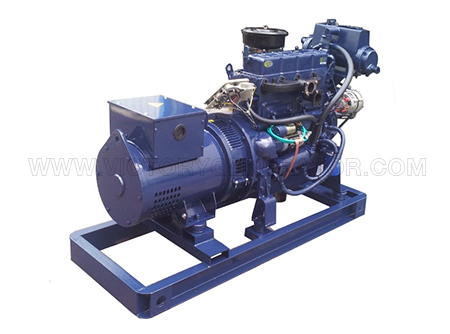

19KVA~125KVA Weichai Marine Diesel Generator Set

Shandong Wei Chai Huafeng Power Co., Ltd whose predecessor is the Second Engine Works of Weifang Diesel Engine Factory, is principally engaged in the manufacture and sale of low to medium power multi-cylinder diesel engines. Our diesel engines are used primarily for operating various types of machinery and equipment in the power generator, agricultural equipment and machinery and construction machinery industries. Such machinery and equipment include power generators, tractors, harvesters, irrigation equipment, excavators, wheeled loaders and forklifts. Our engines are also used in small marine vessels and medium-duty trucks.

The core products of our Group are the R-series and the 495-series diesel engine. Most of our engines have either four cylinders or six cylinders, with an output range of approximately 24kW~155kW. The annual production capacity of the diesel engine and generating sets is approximately 60, 000 sets.

Victory Weichai Huafeng series diesel gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device,  engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.

Technical Specifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phases 4 wires

Insulation Grade: H

stable voltage ≤±2.5%

voltage-form distortion rate≤5%

With brushless excitation

Genset Features:

1. Brand new famous China Brand Weichai Huafeng Marine type water-cooled diesel engine

2. Marine type synchronous A.C. Alternator Self with Self-excitation or PMG Systems, with AVR delivering non fluctuating power

3. Cooling system: heater exchanger and sea water pump

4. Good quality MCCB breaker mounted

5. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

6. 24V DC electric start system

7. Industrial primary silencer with flexible connection elbows

8. Standard tool kits

9. Test report, Set of drawings and Operation&Maintenance English manuals

Optional Parts:

1. Free maintenance lead-acid starting battery and its cables

2. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame

3. Mounted intelligent famous Brand Smartgen HGM6120 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Extemal recessed emergency stop button for extra safety.

4. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

5. Radiator with engine driven fan mounted on skid for those Emergency Generators

6- ATS: Automatic transfer switch bewteen mains power and generating power

19KVA~125KVA 50Hz Weichai Huafeng Marine Generator Set

Genset ModelFrequency (50Hz)Rated PowerEngine ModelEngine Rated Power (KW)Speed (RPM)Overall Dimension&Weight
KWKVAL (mm)W (mmH (mm)Weight (kg)
CCFJ-15501519 495D427 1500 16107501130650
CCFJ-20502025 495D427 1500 16107501130680
CCFJ-24502430 K4100D430 1500 16107501130730
CCFJ-30503038 R4105D440 1500 16107501130770
CCFJ-40504050 R4105ZD456 1500 16107501130850
CCFJ-50505063 R6105D558 1500 207010101370950
CCFJ-64506480 R6105ZD475 1500 2070101013701050
CCFJ-75507594 R6105ZLD4100 1500 2070101013701090
CCFJ-905090113 R6105AZLD4110 1500 2070101013701150
CCFJ-10050100125 R6105IZLD4132 1500 2200110014501200
