ComAp Control System

ComAp designs and manufactures control products for power generation and diesel/gas engines, along with associated accessories and software. We’re leading the way in providing intelligent electronic control products and solutions that are highly flexible, intuitive and scalable.


We ensure that we are connected with our customers so they receive world-class advice at every stage of our relationship, as well as unrivalled value through close collaboration. This allows us to fulfil their existing needs, as well as understand and meet their future requirements.


Continuous investment in our specialist global network enables us to maintain excellence in customer service, empowering our people and partners to deliver the highest standards of technical expertise and local support to our customers across the world.

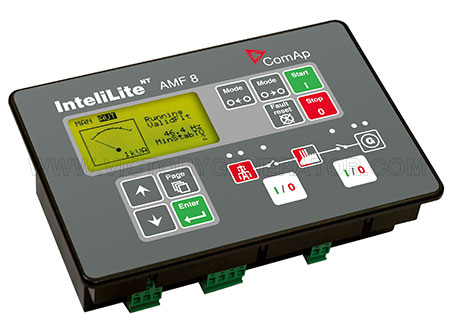

1. Discription (AMF 8)

InteliLiteNT AMF8/9 is a comprehensive AMF-controller for single generating sets and sets operating in stand-by mode. IL-NT AMF9 features extended support of electronic engines.

InteliLiteNT controllers are equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive operation, which sets, together with high functionality, new standards in Gen-set controls.

InteliLiteNT automatically starts the Gen-set, closes the Gen-set C.B. when all conditions are met, then stops the engine on external signal or by pressing push buttons.

Gen-set C.B. is controlled by binary output but works without feedback signal. Mains C.B. works similary.

InteliLiteNT provides gas engine support without ventilation.

The key feature of InteliLiteNT is its easy-to-use operation and installation. Predefined configurations for typical applications are available as well as user-defined configurations for special applications.


Features

Compact gen-set controller for single genset operating in standby prime power modes

Meets all requirements for Auto Mains Failure (AMF) applications

Easy to setup

Wide gen-set monitoring and protection

Running hours event and performance log

Multiple languages (user changeable) in controller, even more in installation suite

Plug-in extension modules capability

Automatic SMS on alarm or event & gen-set control over SMS*

Modbus

Supports prime power (MRS) applications

Automatic and manual GCB and MCB control

D+ preexcitation terminal

True RMS measurement

3 phase power measurement

3 configurable analog inputs

4 binary inputs

6 binary outputs


Technnical data

Inputs/Outputs overview

ModelBINBOUTAIAOUTCOM1COM2CANRPMGen. VoltageMains VoltageGen. Current
IL-NT AMF84628**Y**Y**NNYYY
IL-NT AMF94628**Y**Y**YNYYY

Note:

** With optional plug-in module

Y – Available

N – Not available


Generator protections

ComAp gen-set controllers provide following range of generator protections.

For each protection adjustable limit and time delay are available.

Comparison table with ANSI codes:

ANSI codeProtectionIL-NT AMF8IL-NT AMF9
59Overvoltage--
27Undervoltage--
47Voltage Asymmetry--
81HOverfrequency****
81LUnderfrequency****
50+51Overcurrent--
46Current Unbalance--
32Overload--
51N+64Earth Fault--
32RReverse Power--
25Synchronism Check--
47Phase Rotation****
37Undercurrent--
55Power Factor--
71Gas (Fuel) Level..

Note:

- Not available

• Available

** Fixed setting

*** Shortcurrent only

Dimensions and weight

Dimensions 180x120x55mm

Weight 450g

Mains and generator

Nominal frequency 50-60Hz

Frequency measurement tolerance 0,2Hz

ComAp Control System

ComAp Control System

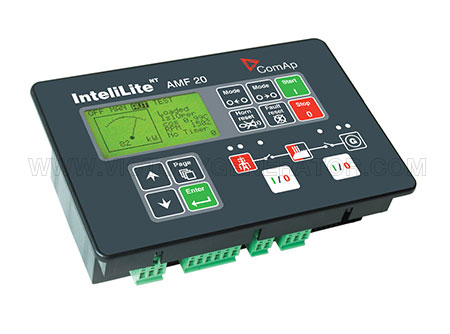

2. Discription (AMF20)

InteliLiteNT AMF20/25 is a comprehensive AMF-controller for single generating sets operating in stand-by mode. IL-NT AMF25 features extended support of electronic engines and extension modules.

InteliLiteNT controllers are equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive operation, which sets, together with high functionality, new standards in Gen-set controls.

InteliLiteNT automatically starts the Gen-set, closes the Gen-set C.B. when all conditions are met, then stops the engine on external signal or by pressing push buttons.

InteliLiteNT provides gas engine support without ventilation.

The key feature of InteliLiteNT is its easy-to-use operation and installation. Predefined configurations for typical applications are available as well as user-defined configurations for special applications.


Features

Single gen-set controller for stand-by and prime power applications.

Direct communication with EFI engines

Total remote monitoring and control

Easy to install, configure and use

Wide range of communication capabilities including:

*connection via RS232, RS485, CAN and on board USB

*internet access using Ethernet, GPRS or 4G

*support for Modbus RTU and TCP

Internal PLC support with PLC editor and monitor included in LiteEdit

Active SMS and emails in different languages

2 x 10 A binary outputs for cranking and fuel solenoid

Option for more additional inputs/outputs

Flexible event based history with up to 350 events

Tier 4 final support

Activation of binary outputs based on analog inputs

Comprehensive gen-set protections

Multipurpose flexible timers

True RMS measurement

UL listed

Technnical data

Inputs/Outputs overview


ModelBINBOUTAIAOUTCOM1COM2CANRPMGen. VoltageMains VoltageGen. Current
IL-NT AMF207+8*
+8**
7+8*
+8**
3+4*8**Y**Y**NYYYY
IL-NT AMF257+8*
+8**
7+8*
+8**
3+4*8**Y**Y**YYYYY

Note:

* With optional extension module IGS-PTM or IG-IOM

** With optional plug-in module

Y – Available

N – Not available


Generator protections

ComAp gen-set controllers provide following range of generator protections.

For each protection adjustable limit and time delay are available.

Comparison table with ANSI codes:


ANSI codeProtectionIL-NT AMF20IL-NT AMF25
59Overvoltage..
27Undervoltage..
47Voltage Asymmetry..
81HOverfrequency..
81LUnderfrequency..
50+51Overcurrent***.
46Current Unbalance..
32Overload..
51N+64Earth Fault-.
32RReverse Power--
25Synchronism Check--
47Phase Rotation****
37Undercurrent--
55Power Factor--
71Gas (Fuel) Level..

Note:

- Not available

• Available

** Fixed setting

*** Shortcurrent only

Dimensions and weight

Dimensions 180x120x55mm

Weight 450g

Mains and generator

Nominal frequency 50-60Hz

Frequency measurement tolerance 0,2Hz

ComAp Control System

ComAp Control System

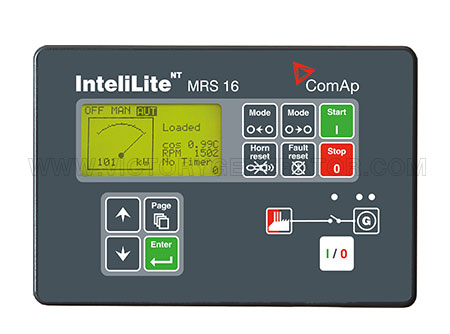

3. MRS16

Discription

InteliLiteNT-MRS is a comprehensive controller for single generating sets. IL-NT MRS 15/16 features extended support of electronic engines and extension modules.

InteliLiteNT controllers are equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive operation, which sets, together with high functionality, new standards in Gen-set controls.

InteliLite automatically starts the Gen-set, closes the Gen-set C.B. when all conditions are met, then stops the engine on external signal or by pressing push buttons.

InteliLiteNT provides gas engine support without ventilation.

The key feature of InteliLiteNT is its easy-to-use operation and installation. Predefined configurations for typical applications are available as well as user-defined configurations for special applications.


Features

Compact gen-set controller for single operating genset

Manual and remote start (MRS) applications

Full gen-set monitoring and protection

Outstanding EFI engine support with diagnostic messages in plain text via J1939

Detailed event and performance log with date and time

Multiple languages (user changeable) in controller, even more in installation suite

Plug-in and CAN bus extension modules capability

WebSupervisor, AirGate and LOCATE support*

Automatic SMS on alarm or event & gen-set control over SMS*

On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite

Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS

Fuel theft protection and Total fuel consumption monitoring

Earth fault current protection*

Alternative switchable configuration

Automatic and manual GCB control

Magnetic pickup input

D+ preexcitation terminal

True RMS measurement

3 phase power measurement

3 configurable analog inputs

6 binary inputs

6 binary outputs

* Plug-in module required

Low temperature version is availible for operation from -40C to +70C


Technnical data

Inputs/Outputs overview

ModelBINBOUTAIAOUTCOM1COM2CANRPMGen. VoltageMains VoltageGen. Current
IL-NT MRS156+8*+8**6+8*+8**3+4*8*Y*Y*YYYNY
IL-NT MRS166+8*+8**6+8*+8**3+4*8*Y*Y*YYYNY

Note:

* With optional extension module IGS-PTM or IG-IOM

** With optional plug-in module

Y – Available

N – Not available


Generator protections

ComAp gen-set controllers provide following range of generator protections.

For each protection adjustable limit and time delay are available.

Comparison table with ANSI codes:

ANSI codeProtectionIL-NT MRS15IL-NT MRS16
59Overvoltage..
27Undervoltage..
47Voltage Asymmetry..
81HOverfrequency..
81LUnderfrequency..
50+51Overcurrent..
46Current Unbalance..
32Overload..
51N+64Earth Fault..
32RReverse Power--
25Synchronism Check--
47Phase Rotation****
37Undercurrent--
55Power Factor--
71Gas (Fuel) Level..

Note:

- Not available

• Available

** Fixed setting

*** Shortcurrent only

Dimensions and weight

Dimensions 180x120x55mm

Weight 450g

Mains and generator

Nominal frequency 50-60Hz

Frequency measurement tolerance 0,2Hz
