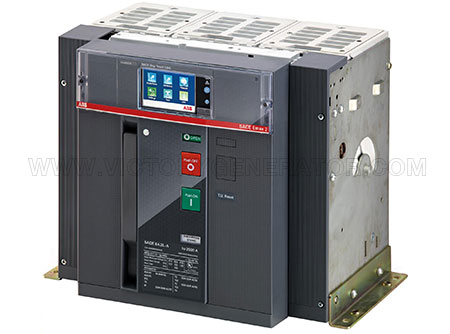

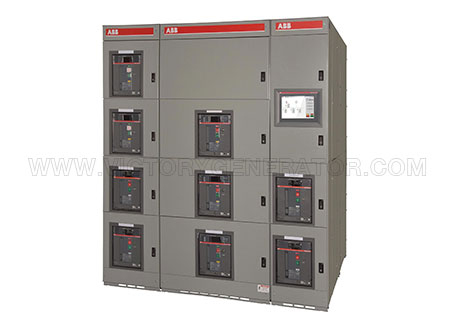

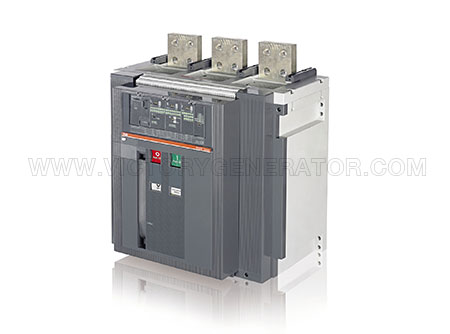

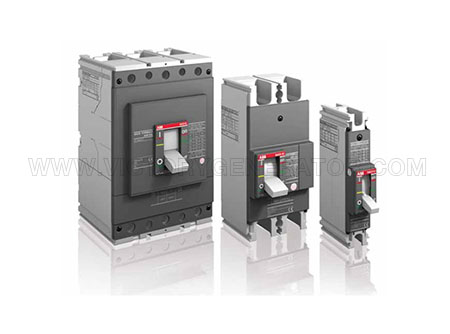

63A~2500A ABB Automatic Transfer System

ABB is a pioneering technology leader that is writing the future of industrial digitalization. For more than four decades, it has been at the forefront, innovating digitally connected and enabled industrial equipment and systems. Every day, it drive efficiency, safety and productivity in utilities, industry, transport and infrastructure globally. With a heritage spanning more than 130 years, ABB operates in more than 100 countries and employs around 132,000 people.


Automatic transfer switches (ATS) are used in applications with a backup power source to guarantee the continuity of power supply.They transfer loads from An automatic transfer switch measures the voltage level and frequency of the primary and backup (emergency) lines. According to these measurements, the load is connected to the appropriate power source. Usually, the primary power source is the utility grid backup power source is a generator set.


In normal conditions, the load is fed by the utility grid. If there is a power outage, the ATS detects the voltage fault in the primary line and sends a start-up command to the genset.When the genset is operational and voltage is available in the backup line, the ATS transfers the load from the utility grid to the genset.The genset supplies power to the load during the outage period. As soon as the power is available from the utility grid, the ATS detects the voltage in the primary line and transfers the load back. After a successful retransfer the ATS sends a stop signal to the genset.


ABB offers a wide range of components for change-over applications. Meaning that all components can be sourced from one supplier. Effortless assembly, safety features, optimized performance and small size enable OTM63…2500_C motorized change-over switches to improve the performance of your application!


Performance that meets your needs

Tested according to IEC 60947-3 and IEC 60947-6-1.

Full ratings according to utilization categories AC22A/32B which are the typical categories in GenSet applications.

A wide supply voltage range provides enhanced logistics and effortless design work.

3- and 4-pole switches as standard.


Safe to use

OTM is not only a transfer device, it is also an isolator providing safe maintenance work.

Reliable position indication is always guaranteed.

Finger-safe construction prevents contact with live parts.

Mechanical and electrical locking options - safety is always considered.


63A~2500A ABB ATS

ModelOTM63F4CM230COTM80F4CM230COTM100F4CM230COTM125F4CM230COTM160E4CM230COTM250E4CM230COTM400E4CM230COTM630E4CM230COTM800E4CM230COTM1000E4CM230COTM1250E4CM230COTM1600E4CM230COTM2000E4CM230COTM2500E4CM230C
Agreed thermal current Ith63A80A100A125A160A250A400A630A800A1000A1250A1600A2000A2500A
Rated insulation voltage Ui800V1000V
Rated impulse withstand voltage Uimp8KV12KV
Rated work voltage of the switch copper UeAC440V
Rated work current Ie63A80A100A125A160A250A400A630A800A1000A1250A1600A2000A2500A
Rated connection capacity10Ie
Rated breaking capacity8Ie
Rated Short-Circuit Making Capacity (Icm):3.6KA30KA65KA80KA80KA92KA92KA110KA176KA176KA
Rated Short-time Withstand Current (Icw)2.5KA8KA15KA20KA20KA50KA50KA50KA55KA55KA
Transfer Time I-II or II-I0.5S-1S
Control  voltage of the switch motor220-240 V AC/DC
Cabinet modelBB3GCK2
Cabinet size500*250*600mm600*350*700mm1000*800*1900mm
