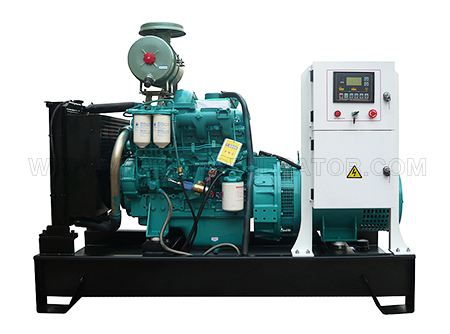

38KVA~1650KVA Yuchai Diesel Generator Set

Guangxi Yuchai Machinery Group Co., Ltd. was formerly "Yulin Quantang Industrial Cooperative" founded in 1951. As a large-sized modern enterprise group integrating the engine industry chain with the petrochemical industry chain and conducting diversified industrial operation, they have become a domestic leading industrial conglomerate through lean management and group operation. They own over 2,000 authorized patents, several patents for invention have filled domestic technical gaps, and they have yielded immeasurable economic and social benefits after being applied. Their projects of Key Technology and Industrialization of Energy-conserving and Environment-friendly Engines and Key Technology of All-condition High Turbocharging of Internal Combustion Engine and Its Engineering Application won the second national prize for progress in science and technology in 2012 and 2013 respectively. In 2011, they developed the country’s first Euro VI diesel engine, keeping pace with advanced world standards.


Victory Yuchai series diesel gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device, engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.


Technical Specifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP21-IP23

Model of Connection: 3 phases 4 wires

Insulation Grade: H

stable voltage ≤±2.5%

voltage-form distortion rate≤5%

With brushless excitation


Genset Features:

1. Brand new famous Yuchai water-cooled diesel engine.

2. Mounted intelligent famous Brand Smartgen HGM6120 control panel with Auto Starting System.

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. Radiator with engine driven fan mounted on skid.

6. Good quality MCCB breaker mounted.

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.

8. 24V DC electric start system.

9. Free maintenance lead-acid starting battery and its cables.

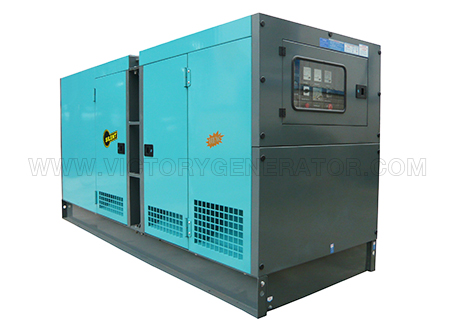

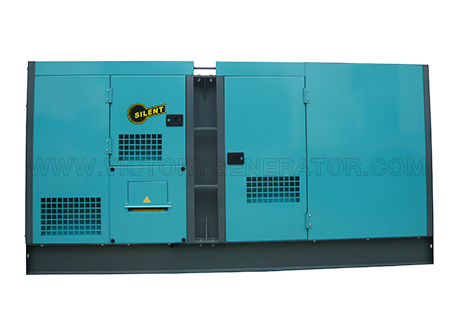

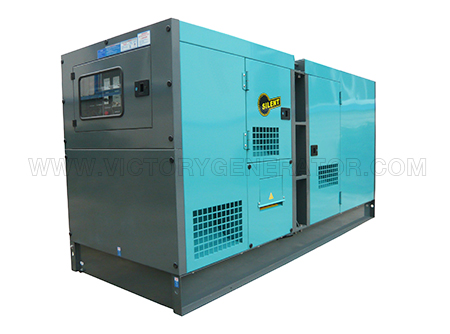

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting.

11. Industrial primary silencer with flexible connection elbows.

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame.

13. Test report, Set of drawings and Operation&Maintenance English manuals.

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power.


38KVA~1650KVA 50HZ Yuchai Diesel Generator Set

Genset ModelFre. (HZ)Prime Power Stanby PowerModelCylinderModelRated current
(based on 400V)
IPProtection Grade
KWKVAKWKVA
V33Y50 3038 3341 YC4D60-D214YHG-30KW54 23H
V45Y50 4050 4556 YC4D60-D214YHG-40KW72 23H
V55Y50 5063 5569 YC4D85Z-D204YHG-50KW90 23H
V70Y50 6480 70.488 YC6B100-D206YHG-64KW115 23H
V88Y50 80100 88110 YC6B135Z-D206YHG-80KW144 23H
V100Y50 90113 100125 YC6B155Z-D206YHG-90KW162 23H
V110Y50 100125 110138 YC6B170L-D206YHG-100KW180 23H
V143Y50 130163 143179 YC6A200L-D206YHG-130KW235 23H
V160Y50 145181 160200 YC6A230L-D206YHG-150KW262 23H
V176Y50 160200 176220 YC6G245L-D206YHG-160KW289 23H
V200Y50 180225 200250 YC6M285L-D206YHG-180KW325 23H
V220Y50 200250 220275 YC6M350L-D206YHG-200KW361 23H
V275Y50 250313 275344 YC6MK420L-D206YHG-250KW451 23H
V330Y50 300375 330413 YC6T550L-D216YHG-300KW541 23H
V385Y50 350438 385481 YC6T550L-D216YHG-350KW631 23H
V420Y50 380475 420525 YC6T600L-D206YHG-40KW686 23H
V440Y50 400500 440550 TC6T660L-D206YHG-400KW722 23H
V500Y50 450563 500625 YC6T700L-D206YHG-450KW812 23H
V500Y50 450563 500625 YC6T760L-D206YHG-450KW812 23H
V550Y50 500625 550688 YC6T830L-D206YHG-500KW902 23H
V660Y50 600750 660825 YC6C1020L-D206YHG-600KW1083 23H
V770Y50 700875 770963 YC6C1170L-D206YHG-700KW1263 23H
V880Y50 8001000 8801100 YC6C1320L-D206YHG-800KW1443 23H
V1320Y50 12001500 13201650 YC6C2040L-D206YHG-1200KW2165 23H
