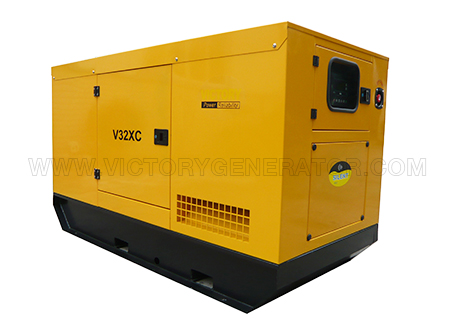

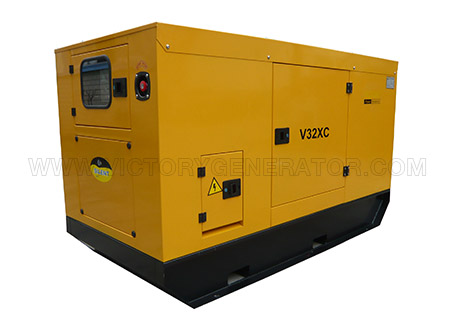

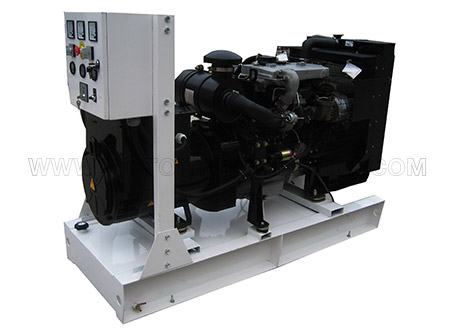

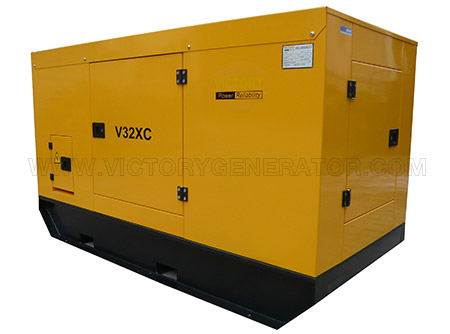

27.5KVA~220KVA Lovol Diesel Generator Set

Tianjin Lovol Engines Co., Ltd. (hereinafter referred to as Lovol Engines) is a modernization manufacturing enterprise of engines, which was established on the basis of Sino-British Joint-Venture Perkins Engines (Tianjin) Co., Ltd. before 2008, after new strategic partners are introduced, scale of assets is expanded, production capacity is raised, and product technology is upgraded in order to adapt the requirements for the trends of the internationalization of engine products. Generator features: High Density of Power: Higher power output than competitive models at close displacement, the power of 3-cylinder can reach 4-cylinder level of competitor.


Low Fuel Consumption: Adopted European patent Quadram combustion chamber which can reduce fuel consumption, emission and noise, meanwhile raise engine power.

Good Appearance: Similar to original products of UK Perkins.

High Performance Cost Ratio: Having the similar performance of original products of UK Perkins, but the price is very competitive.

Good Cold Start Performance: The engine can be easily started without the help of pre-heater at the temperature of -10C; And with the cold start aid at the temperature of -25C.

Stability & Reliability: Stable and reliable engine performance, good market feedback.


Victory Foton Lovol series diesel gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device, engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.


Technical Speicifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phase 4 lines

Egnine charactors: Vertical type, 4-stroke, water cooled

voltage regulation: ±1.0% with 4% engine governing

Insulation Grade: H


Genset Features:

1. Brand new famous Foton Lovol water-cooled diesel engine

2. Mounted intelligent European Brand ComAp AMF20 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. 50℃ Copper-Wire Radiator with engine driven fan mounted on skid

6. Good quality MCCB breaker mounted

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

8. 24V DC electric start system

9. Free maintenance lead-acid starting battery and its cables

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

11. Industrial primary silencer with flexible connection elbows

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame

13. Test report, Set of drawings and Operation&Maintenance English manuals

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power


27.5KVA~200KVA 50HZ Lovol Diesel Generator Set


Genset ModelFrequency (HZ)Prime PowerStandby PowerEngine ModelFuel consumption
(g/kw.h)
NO. OF CYCLINDERBORE
(mm)
STROKE
(mm)
LUB-OIL CAPACITY
(L)
COOLANT  CAPACITY
(L)
Open type Dimensions
L*W*H
KWKVAKWKVA(mm)(kg)
V24L502227.524301003G21031001278.1212000*750*1530710
V40L50364540501003TG20531001278.1212000*750*1530865
V38L503442.538481004G21041001278.1212220*750*15301050
V45L50405045561004TG20541001278.522.22220*750*15301330
V53L50486053661004TG20541001278.522.22220*750*15301330
V65L50587365811004TG20541001278.522.22220*750*15301330
V75L50688575941006TG1A205610012716.127.72620*770*15701560
V80L507290801001006TG1A205610012716.127.72620*770*15701560
V88L5080100881101006TG2A205610012716.127.72620*770*15701580
V100L501001251101381006TAG1A20561001271937.222620*770*15701600
V120L501081351201501006TAG20561001271937.222620*770*15701600
V132L501201501321651106C-P6TAG220561001271937.222710*830*15801830
V140L501281601401751106C-P6TAG320561001271937.222820*920*17101850
V160L501451811602001106C-P6TAG420561001271937.222820*920*17101850




32.5KVA~220KVA 60HZ Lovol Diesel Generator Set

Genset ModelFrequency
(HZ)
Prime PowerStandby PowerEngine ModelFuel consumption
(g/kw.h)
NO. OF CYCLINDERBORE
(mm)
STROKE
(mm)
LUB-OIL CAPACITY
(L)
COOLANT  CAPACITY
(L)
Open type Dimensions
L*W*H
KWKVAKWKVA(mm)(kg)
V29L602632.529361003G21031001278.1212000*750*1530710
V45L60405045561003TG20531001278.1212000*750*1530865
V40L60364040501004G21041001278.1212220*750*15301050
V45L60405045561004TG20541001278.522.22220*750*15301330
V53L60486053661004TG20541001278.522.22220*750*15301330
V65L60587365811004TG20541001278.522.22220*750*15301330
V75L60688575941004TG20541001278.522.22220*750*15301330
V75L60688575941006TG1A205610012716.127.72620*770*15701580
V80L607290801001006TG1A205610012716.127.72620*770*15701580
V92L6080100921151006TG1A205610012716.127.72620*770*15701580
V100L60921151001251006TG2A205610012716.127.72620*770*15701580
V123L601121401231541006TAG1A20561001271937.222620*770*15701600
V132L601201501321651006TAG20561001271937.222620*770*15701600
V145L601321651451811106C-P6TAG220561001271937.222710*830*15801830
V160L601451811602001106C-P6TAG320561001271937.222820*920*17101850
V176L601602001762201106C-P6TAG420561001271937.222820*920*17101850
