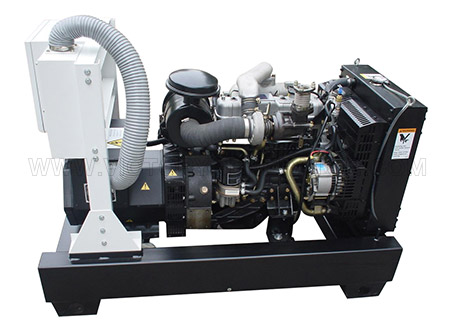

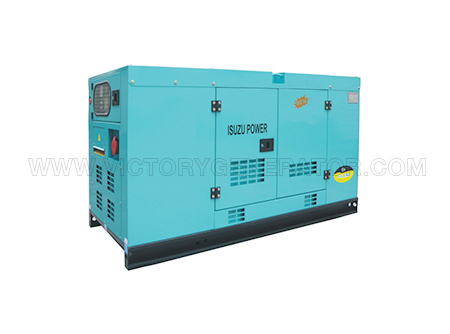

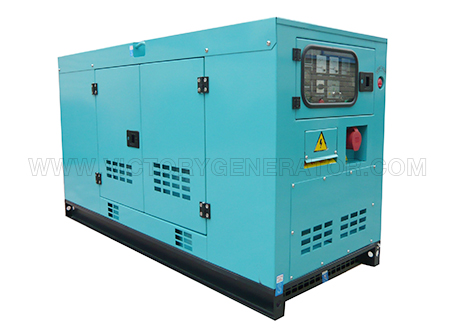

20KVA~50KVA ISUZU Diesel Generator Set

Victory Isuzu series power diesel engine generator adopts with Isuzu brand engine made by China Foton Company, whose 4JB serie is developed in cooperation with Austria AVL company on the base of ISUZU engine. It is optimized in fueling can cooling system according to the charactor of diesel genset. It is small-sized and compact with high adaptability and reliability and is an ideal genset in the 20kW to 40kW serie gensets.


Victory Isuzu series diesel gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001: 2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device, engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.


Diesel Generator Parameter:

Power Factor: 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phase 4 lines

Insulation Grade: H

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V


Isuzu Generator Features:

1. High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.

2. The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.

3. Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.

4. Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.

5. Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.

6. Big enough free maintenance battery, world famous brand.

7. Packing with Strong and thick enough WOOD CASE to protect the gensets during long transporation.

8. Every spare parts suppliers are choosed extremely stricted, to control the quality well.

9. From engine to whole genset, we test every link of every product, and we also have test machinery and test center.

10. Many spare parts are produced by ourselves, could save cost for customers greatly.

11. We welcome every customer visiting our factory and test our products.

12. We have more than 20 engineers and technicians to provide reliable after sales service to all of our generator sets.


20KVA~40KVA 50HZ ISUZU Diesel Generator Set

GENSET MODELPrime PowerStandby PowerDIESEL ENGINE MODELAspirationBoreXStroke
(mm)
Cubic Capacity
(L)
Compression RatioSteedy Governing RateRating Fuel Consumption
(L/h)
Open type dimensions
(LxWxH) mm
Open type Weight
(kg)
V18SU16KW/20KVA18KW22.5KVA4JB11500RPM, 50HzNatural 93X1022.77118.2:1≤5%51750*700*1010650
V22SU20KW/25KVA22KW/27.5KVA4JB11500RPM, 50HzNatural 93X1022.77118.2:1≤5%5.61750*700*1010660
V26SU24KW/30KVA26KW/33KVA4JB1T1500RPM, 50HzTurbocharged93X1022.77118.2:1≤5%6.41750*700*1010680
V37SU32KW/40KVA36KW/45KVA4JB1TT1500RPM, 50HzTurbocharged93X1022.77118.2:1≤5%8.51850*700*1150780




20KVA~50KVA 60HZ ISUZU Diesel Generator Set

GENSET MODELPrime PowerStandby PowerDIESEL ENGINE MODELAspirationBoreXStroke
(mm)
Cubic Capacity
(L)
Compression RatioSteedy Governing RateRating Fuel Consumption
(L/h)
Open type dimensions
(LxWxH) mm
Open type Weight
(kg)
V18SU16KW/20KVA18KW22.5KVA4JB11800RPM, 60HzNatural 93X1022.77118.2:1≤5%61750*700*1010650
V26SU24KW/30KVA26KW/33KVA4JB11800RPM, 60HzNatural 93X1022.77118.2:1≤5%6.51750*700*1010660
V34SU30KW/37.5KVA34KW/42.5KVA4JB1T1800RPM, 60HzTurbocharged93X1022.77118.2:1≤5%7.81750*700*1010680
V45SU40KW/50KVA45KW/56KVA4JB1TT1800RPM, 60HzTurbocharged93X1022.77118.2:1≤5%9.41850*700*1150780
