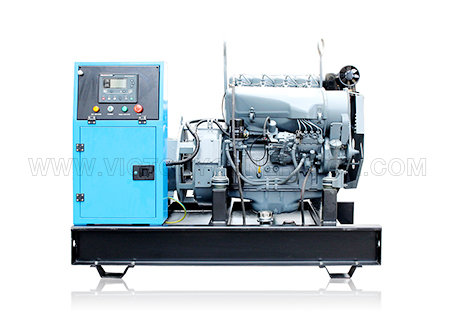

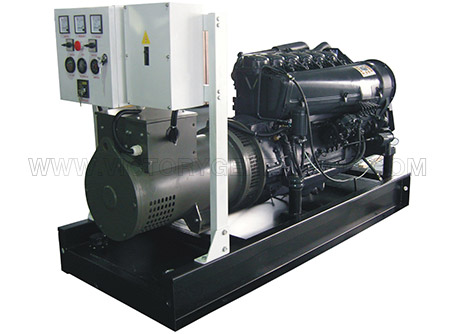

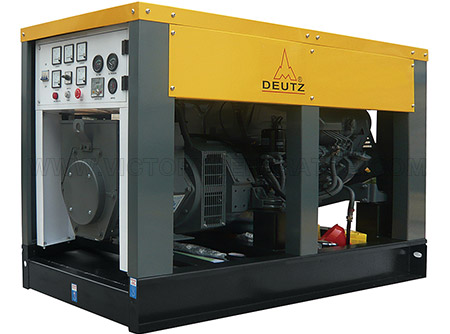

12.5KVA~165KVA Deutz Air-cooled Diesel Generator Set

Victory Air-cooled diesel generators adopts with China made air-cooled engines which use the most advanced engine Deutz technology. It has characteristic as follows:

1) Radiation surface of cylinder cover, which average temperature is 170℃, that is higher than  ambient air temperature,so it is suitable for high temperature area

2) It doesn't need anti-frozen liquid,it can be well started and work reliably even under -35℃,

3) It doesn't have water cooled system, so it doesn’t have these trouble,such as erosion ,rust, water dreg. The trouble is lower by 27% than water cooling diesel engine.

4) Cylinder wall is suitable for high temperature and fast rising temperature, so its acidity erosion  and friction are less than water cooled engine.

5) It has fast warm and good start-up function, so that it can reach working temperature in 5-6  minutes to enter loading status.

6) With high reliability, low trouble,long lifetime and easy operation, it can run well in normal  technical maintenance.


Victory diesel gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001: 2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device, engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.

Technical Specifications

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging) or 1.0

Protection Standard: IP21-IP23

Model of Connection: 3 phase or single phase

Insulation Grade: H/F, Voltage-form distortion rate≤5%

Stable voltage ≤±2.5%, With brush or brushless excitation


Genset Features:

1. Brand new air-cooled diesel engine with advanced Deutz technology from Germany

2. Mounted intelligent European Brand ComAp AMF20 control panel with Auto Starting System

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power

4. Extemal recessed emergency stop button for extra safety.

5. Without Radiator, a driven fan mounted on engine

6. Good quality MCCB breaker mounted

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable

8. 24V DC electric start system

9. Free maintenance lead-acid starting battery and its cables

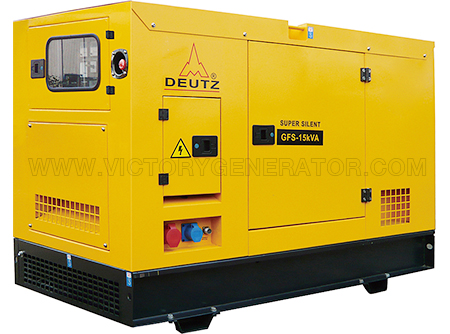

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting

11. Industrial primary silencer with flexible connection elbows

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame

13. Test report, Set of drawings and Operation&Maintenance English manuals

14. Standard tool kits

15- ATS: Automatic transfer switch bewteen mains power and generating power


12.5KVA~138KVA 50Hz Deutz Air-cooled Diesel Generator Set

Genset ModelFrequency (Hz)Prime PowerStandby PowerEngine ModelFuel Consumption
(g/kwh)
Governor TypeIntaking methodBore*Stroke
(mm)
Displacement
(L)
KWKVAKWKVA
VD12F501012.51215F2L912D238MechanicalNaturally100*1201.88
VD14F5012151417.5F2L912D238MechanicalNaturally100*1201.88
VD18F5016201822.5F3L912D232MechanicalNaturally100*1202.828
VD24F5020252430F3L912D232MechanicalNaturally100*1202.828
VD26F5024302633F4L912D228MechanicalNaturally100*1203.77
VD33F503037.53341F4L912TD228MechanicalTurbocharged100*1203.77
VD37F503442.53746F4L912TD228MechanicalTurbocharged100*1203.77
VD45F5040504556F6L912D228MechanicalNaturally100*1205.655
VD50F5045565063F6L913D228MechanicalNaturally102*1256.128
VD55F5050635569F6L912TD228MechanicalTurbocharged100*1205.655
VD65F505872.56581BF6L913D228ElectronicTurbocharged102*1256.128
VD75F5068857594BF6L913D228ElectronicTurbocharged102*1256.128
VD88F508010088110BF6L913D228ElectronicTurbocharged102*1256.128
VD100F5090112.5100125BF6L913CD221ElectronicTurbocharged102*1256.128
VD110F50100125110138BF6L913CD221ElectronicTurbocharged102*1256.128




12.5KVA~165KVA 60Hz Deutz Air-cooled Diesel Generator Set


Genset ModelFrequency (Hz)Prime PowerStandby PowerEngine ModelFuel Consumption
(g/kwh)
Governor TypeIntaking methodBore*Stroke
(mm)
Displacement
(L)
KWKVAKWKVA
VD12F601012.51215F2L912D238MechanicalNaturally100*1201.88
VD15F6013161519F2L912D238MechanicalNaturally100*1201.88
VD18F6016201822.5F3L912D232MechanicalNaturally100*1202.828
VD24F6020252430F3L912D232MechanicalNaturally100*1202.828
VD26F6024302633F3L912D232MechanicalNaturally100*1202.828
VD33F603037.53341F4L912D228MechanicalNaturally100*1203.77
VD45F6040504556F4L912TD228MechanicalTurbocharged100*1203.77
VD50F6045565063BF4L913D229MechanicalNaturally102*1254.086
VD55F6050635569F6L912D228MechanicalNaturally100*1205.655
VD60F6054686070F6L913D228MechanicalNaturally102*1256.128
VD72F6064807290F6L912TD228MechanicalTurbocharged100*1205.655
VD88F608010088110BF6L913D228ElectronicTurbocharged102*1256.128
VD100F6090112.5100125BF6L913D228ElectronicTurbocharged102*1256.128
VD110F60100125110138BF6L913CD221ElectronicTurbocharged102*1256.128
VD132D60120150132165BF6L913CD221ElectronicTurbocharged102*1256.128
