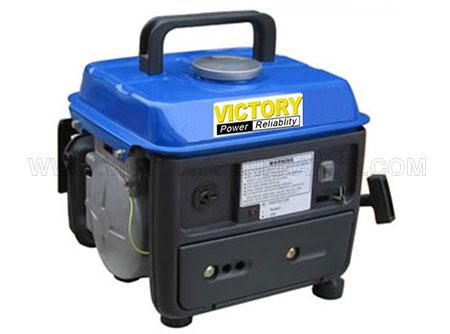

650W~1100W Gasoline Portable Generator

Victory exports a lot of compact gasoline generators ranging in capacity from 0.6 – 7.0 kVA to Middle East, South-Central Asia,  North America, Europe, Africa, and other countries around the world every year.These gasoline generators are widely used for a diverse range of needs, such as an emergency power source in the event of a power failure, outdoor construction work, outdoor leisure activities and for disasters and other emergencies. Since the company was found in 1999, we always do the best to improve the quality in order to meet the requirements of various customers. Therefore, Victory LT series engines emerged as required, which have high reliability, high quality, low emissions, and compact design. LT gasoline engine series of generators that incorporated a super light weight and compact constraction offering low fuel consumption and low noise. Vitroy LT engine adopted the design of overhead valve (OHV) mechanism and inclined cylinder, which comes from Honda company, and it's very popular in the world.

Features:

1. OHV design permits low fuel consumption and noise

2. Classical combustion-chamber shape and excellent suction exhaust effect which to improve combustion efficiency

3. Auto decompressing makes starting easy

4. Oil alert automatically shut off the engine

5. Reliable transistorized magneto-ignition system

6. Speedy start, smooth operation and low vibration

7. With the recoil starter which is easy started by a woman

8. With transistor magnet ignition device to ensure the stable perfomance of ignition & low fuel consumption


Technology

Frequency 50Hz, 3000RPM, Single-phase voltage 220V, 230V, 240V, etc.

Three-phase voltage 380V/220V, 400V/230V, 415V/240V, etc.

Frequency 60Hz, 3600RPM, Single-phase voltage 120V, 127V, 277V, etc.

Three-phase voltage 208V/120V, 220V/127V, 480V/277V, etc.

Power Factor: 1.0

Protection Standard: IP21-IP23

Model of Connection: 1 phase 2 lines, 3 phase 4 lines

Insulation Grade: H

Power Range: 0.6KW-7.0KW

Starting System: Recoil or Electric

Govern System: Centrifugal Mechanical

Air cleaner: Dual element

Rotor & Stator: 100% Copper wire

Fuel Efficient & High Output Operation: OHV design for increased efficiency and optimal power transfer

Exceotionally Quiet

1. Large capacity, multi-chamber exhaust system

2. Reduced mechanical noise due to light weight, noise-reducing materials

Fuel Tank: 8~10 hours continuous running under full load


Applications

Refrigerator or Freezer

Microwave Oven

Furnace Fan, gas or fuel oil

Sump Pump

TV / DVD

Hair Dryer

Coffee Maker

Computer

Garage Door Opener

Incandescent Lights


650W~950W 50Hz Gasoline Portable Generator

GeneratorModel :VT950VT1100
Frequency (Hz)5050
Rated.AC output (KVA)0.650.85
Max.AC output (KVA)0.720.9
Voltage110V-240V110V-240V
PhaseSingle phaseSingle phase
D.C. output/V-A12/8.312/8.3
Power factor(cosΦ)1.0 1.0
Alternator typeSelf-excited,2-pole,single phase Self-excited,2-pole,single phase
Material of winding100% Copper Wire100% Copper Wire
Noice level at 7 M (dBA)65 65
EngineEngine ModelLT63LT73
Type1-cylinder, 2 stroke, air-cooled1-cylinder, 2 stroke, air-cooled
Bore×stroke(mm)N/AN/A
Speed (rpm)30003000
Displacement (cc)6373
Compression ratio50:150:1
Max. Output2.0HP (1.5KW)2.0HP(1.5KW)
Rated Output1.5HP(1.0KW)1.5HP(1.0KW)
Max. TorqueN/AN/A
Ignition SystemC.D.IC.D.I
Gasoline Consumption ≤450g/kw/h450g/kw/h
Fuel Tank Capacity4.24.2
Lubracation SystemPressure splashedPressure splashed
Lube oil capacityN/AN/A
Starting systemRecoilRecoil
DimensionsSize(LxWxH)370*315*310mm414*345*351mm
Net weight19kg20.5kg
20ft Container730PCS730PCS
40ft Container1400PCS1400PCS
Optional  FeaturesHandle & WheelsNoNo
Three phase voltageNoNo




800W~1100W 60Hz Gasoline Portable Generator

GeneratorModel :VT950VT1100
Frequency (Hz)6060
Rated.AC output (KVA)0.72 0.95
Max.AC output (KVA)0.81.1
Voltage110V-240V110V-240V
PhaseSingle phaseSingle phase
D.C. output/V-A12/8.312/8.3
Power factor(cosΦ)1.0 1.0
Alternator typeSelf-excited,2-pole,single phase Self-excited,2-pole,single phase
Material of winding100% Copper Wire100% Copper Wire
Noice level at 7 M (dBA)65 65
EngineEngine ModelLT63LT73
Type1-cylinder, 2 stroke, air-cooled1-cylinder, 2 stroke, air-cooled
Bore×stroke(mm)N/AN/A
Speed (rpm)36003600
Displacement (cc)6373
Compression ratio50:150:1
Max. Output2.0HP (1.5KW)2.0HP(1.5KW)
Rated Output1.5HP(1.0KW)1.5HP(1.0KW)
Max. TorqueN/AN/A
Ignition SystemC.D.IC.D.I
Gasoline Consumption ≤450g/kw/h450g/kw/h
Fuel Tank Capacity4.24.2
Lubracation SystemPressure splashedPressure splashed
Lube oil capacityN/AN/A
Starting systemRecoilRecoil
DimensionsSize(LxWxH)370*315*310mm414*345*351mm
Net weight19kg20.5kg
20ft Container730PCS730PCS
40ft Container1400PCS1400PCS
Optional  FeaturesHandle & WheelsNoNo
Three phase voltageNoNo
