63KVA~975KVA SDEC Diesel Generator Set

Shanghai Diesel Engine Co., Ltd. (SDEC), with SAIC Motor Corporation Limited as its main shareholder, is a large state-owned high-tech enterprise engaged in research and development and manufacture of engines, engine parts and generator sets, possessing a state-level technical center, a postdoctoral working station, world-level automatic production lines and a quality assurance system that meets passage cars standards. Its former was Shanghai Diesel Engine Factory that was established in 1947 and was restructured into a stock-shared company in 1993 with shares of A and B.


Victory SDEC series diesel gensets offered by Victory Power Generation are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience. Besides the design of industry workshop, our company also has good experience with the design for the monitors in intellectualized building, including connection, remote device, engine room without on duty, soundproof design and installation. Up till now, there are thousands gensets with control monitor provided by Victory Power Generation, which proves the high preponderant situation of Victory Power Generation.


Technical Specifications:

Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V

Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V

Power Factor 0.8(lagging)

Protection Standard: IP21-IP23

Model of Connection: 3 phases 4 wires

Insulation Grade: H

stable voltage ≤±2.5%

voltage-form distortion rate≤5%

With brushless excitation


Genset Features:

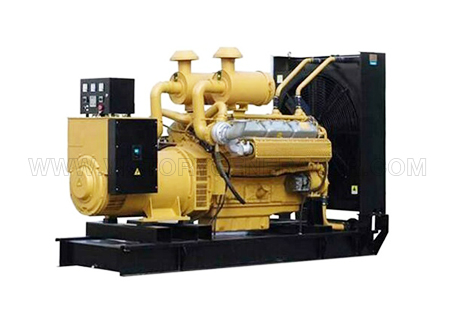

1. Brand new famous SDEC(Shanghai Diesel Engine Co. Ltd.) water-cooled diesel engine.

2. Mounted intelligent famous Brand Smartgen HGM6120 control panel with Auto Starting System.

Protection Function: High temperature, Over speed, Low Speed, Low Oil Pressure, Over voltage, Over current, Undervoltage.

3. Synchronous A.C. Alternator Self Excitation System, with AVR delivering non fluctuating power.

4. Extemal recessed emergency stop button for extra safety.

5. Radiator with engine driven fan mounted on skid.

6. Good quality MCCB breaker mounted.

7. Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.

8. 24V DC electric start system.

9. Free maintenance lead-acid starting battery and its cables.

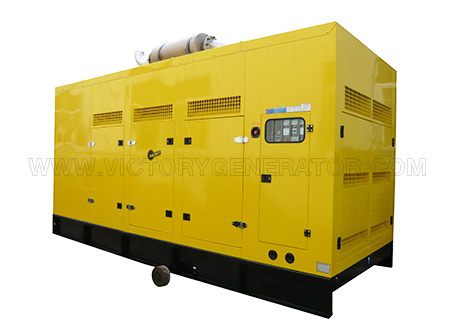

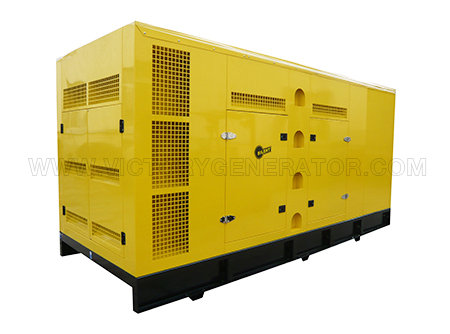

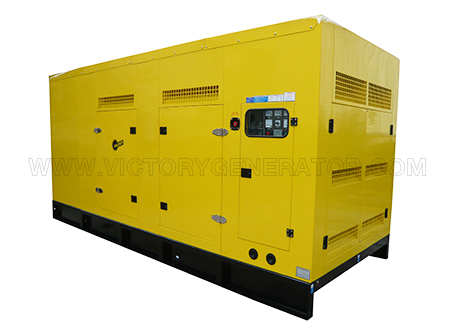

10. Weatherproof and soundproof enclosure high grade steel protected by powder coat painting.

11. Industrial primary silencer with flexible connection elbows.

11. Fuel tank for at least 8~10 hours continuous running under full load, with fuel gauge integrated on base frame.

13. Test report, Set of drawings and Operation&Maintenance English manuals.

14. Standard tool kits.

15- ATS: Automatic transfer switch bewteen mains power and generating power.


63KVA~975KVA 50HZ SDEC Diesel Generator Set

Genset ModelFrequency
(Hz)
Prime PowerStandby PowerEngine ModelCylinderDisplacement
(L)
Dimensions
(mm)
Weight
(kg)
KWKVAKWKVA
V55SC5050635570SC4H95D24L4.31980*880*15301006
V70SC5064807088SC4H115D24L4.31980*880*15301066
V88SC508010088110SC4H160D24L4.32000*930*16001141
V100SC5090112.5100125SC4H160D24L4.32000*930*16001141
V110SC50100125110137.5SC4H180D24L4.32150*930*16001176
V132SC50120150132165SC7H230D26L6.52440*980*17001456
V148SC50135169148185SC7H230D26L6.52440*980*17001536
V165SC50150187.5165206SC7H250D26L6.52440*980*17001536
V176SC50160200176220SC8D280D26L8.272490*1080*18001654
V200SC50180225200250SC9D310D26L8.822490*1080*18001705
V220SC50200250220275SC9D340D26L8.822600*1080*18001776
V264SC50240300264330SC13G420D26L12.883030*1400*19002896
V275SC50250312.5275343.75SC13G420D26L12.883030*1400*19002896
V310SC50280350310388SC12E460D26L12.883030*1400*19003000
V330SC50300375330412.5SC15G500D26L14.163030*1400*19003044
V400SC50360450400500SC25G610D212V25.83630*1720*22504078
V440SC50400500440550SC25G690D212V25.83630*1720*22504078
V484SC50440550484605SC27G755D212V26.63630*1720*22504228
V500SC50450562.5500625SC27G755D212V26.63630*1720*22504228
V550SC50500625550687.5SC27G830D212V26.63630*1720*22504328
V590SC50540675590737.5SC27G900D212V26.63630*1720*22504500
V660SC50600750660825SC33W990D212V32.84360*1620*21606820
V780SC50710887.5780975SC33W1150D212V32.84400*1720*21707359
